Repair Procedures: Replacement
- Driving in rough road (Bumpy, Gravel, Snowy, Unpaved road, etc)
- Driving in mountain road, ascent/descent
- Repetition of short distance driving
- More than 50% operation in heavy city traffic during hot weather above 32°C (89.6°F).
- Police, Taxi, Commercial type operation or trailer towing, etc

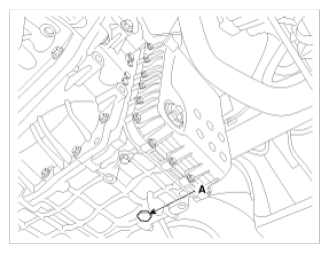

- Remove the drain plug (A) and drain the ATF totally. Reinstall the drain plug.
Drain plug tightening torque: 34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~32.6 lb-ft)
CAUTION: The gasket of the drain plug use new one. - Fill the oil about 5 liters through eyebolt.
- Check the oil level.
(Refer to Hydraulic System - "FLUID ")
