2012 Hyundai AzeraFACTORY OEM SERVICE PROCEDURE
Component Inspection
- Check the condition of HO2S
- Check HO2S for poor connection or loose terminal.
- Check if HO2S is ensurely installed.
- Is the conditions of HO2S normal?
YES
- Go to " 2 Check the Signal waveform of HO2S" as follows.
NO
- Repair it and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

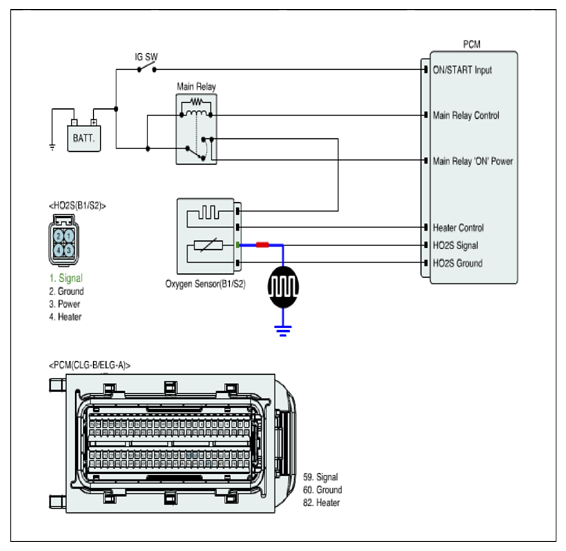

- Check the Signal waveform of HO2S
- IG "OFF" and connect HO2S connector.
- Start Engine
- With engine at operating temperature, monitor signal waveform of HO2S with GDS.
