2012 Hyundai AzeraFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

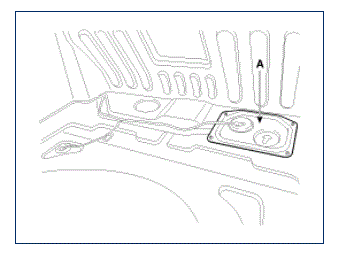

- Remove the fuel pump service cover (A) in the trunk.

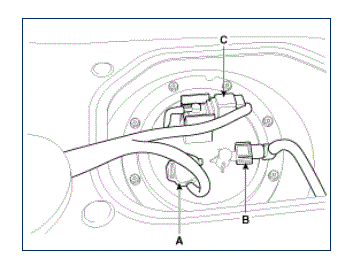

- Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
- Disconnect the fuel feed tube quick connector (C).
- Lift the vehicle and support the fuel tank with a jack.
- Remove the center muffler assembly.
(Refer to "CENTER MUFFLER ")

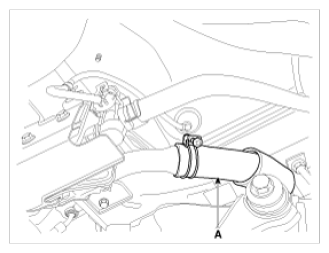

- Disconnect the fuel filler hose (A).
- Disconnect the vapor hose quick-connector (A).

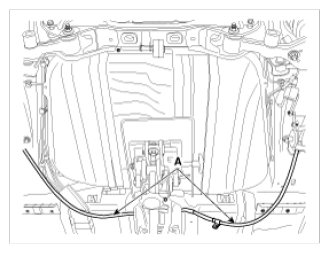

- Remove the parking brake line (A).

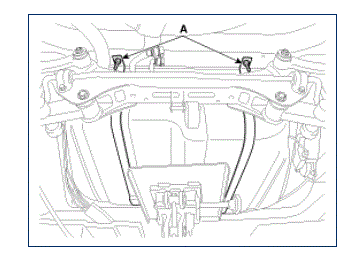

- Remove the fuel tank band installation nuts (A).

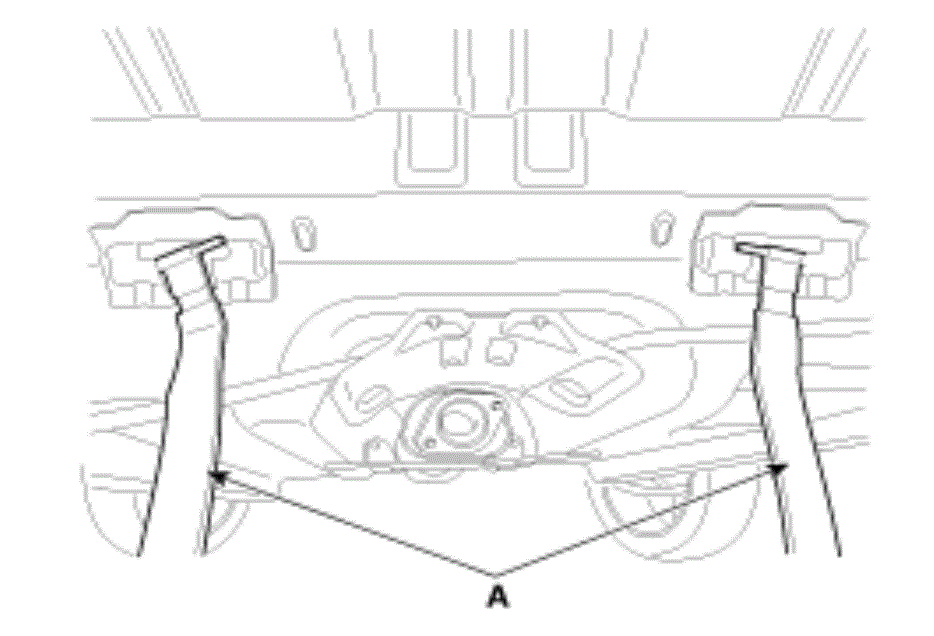

- Remove the fuel tank after removing the fuel tank band (A) as below.
