2012 Hyundai AzeraFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

Set No. 1 cylinder to TDC/compression.
1. Turn the crankshaft pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.

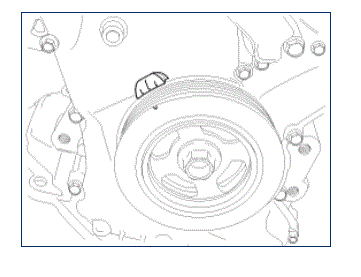

  Fig 1: Identifying Crankshaft Pulley Timing Mark
  Courtesy of HYUNDAI MOTOR AMERICA
2. Check that the mark of the camshaft timing sprockets are in straight line on the cylinder head surface as shown in the illustration. If not, turn the crankshaft clockwise one revolution (360°).

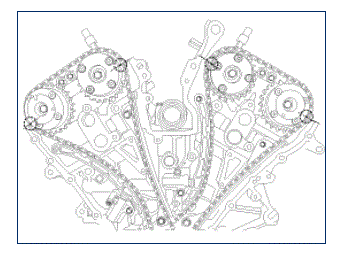

  Fig 2: Identifying Camshaft Timing Sprockets Marks
  Courtesy of HYUNDAI MOTOR AMERICA
