2012 Hyundai AzeraFACTORY OEM SERVICE PROCEDURE
Trunk lid open switch
- Disconnect the negative (-) battery terminal.
- Remove the trunk door trim. (Refer to "TRUNK TRIM ")

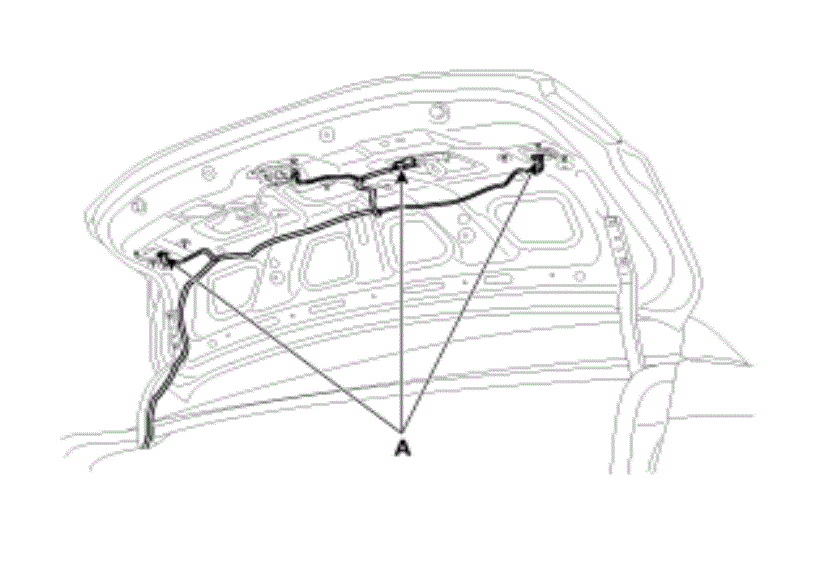

- Disconnect the trunk lid open switch connector (A).
- Remove the rear combination lamp assembly (A) after loosening the nuts (9EA).NOTE: Be careful not to damage the guide boss on the combination lamp assembly.
