Inspection

1. It will be able to diagnose defects of IMS with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
2. Select model and "IPM - Power seat module".

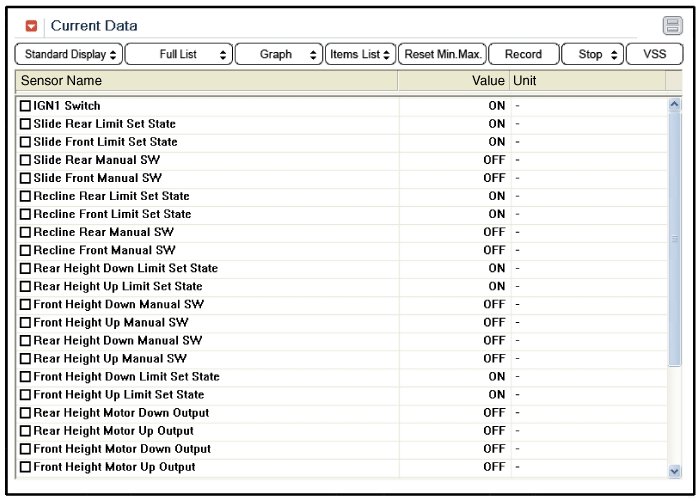

3. Select "Input/output monitoring", if you will check current data of body network system. It provides input/output status of each module.

4. If you will check each module data operation forcefully, select "Actuation test".

5. To check the DTC of the each module, select "DIAGNOSTIC TROUBLE CODES"

6. You can turn ON/OFF of Power seat module option with the "User option"

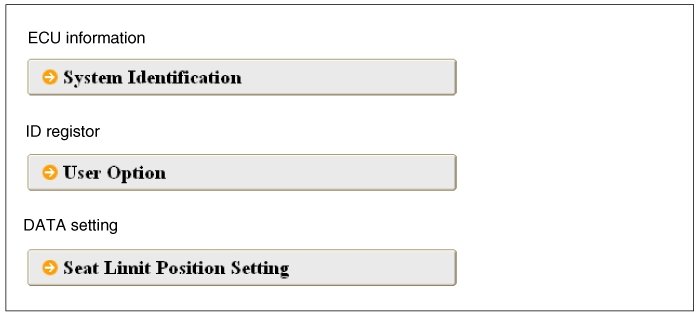

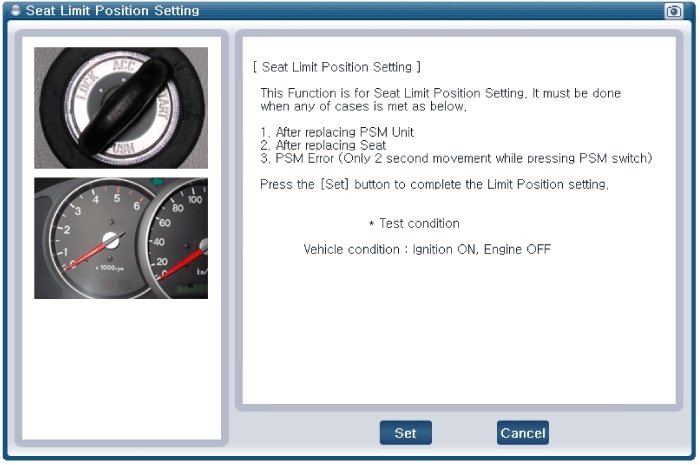

7. Select the "Data setting" to set the seat position setting when replacing the IMS unit or seat module.

8. Click the "Set".

9. Click the "OK" to complete the set up procedure.

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the door trim (A) after loosening mounting screws.

3. Remove the memory power seat control switch (A) after loosening connector and screws (3EA) from the door trim.

Installation

NOTE:
- Make sure that the IMS control switch connectors and related connectors are plugged in properly.
- Check the IMS control switch operates normally.

1. Install the memory power seat control switch after connecting the switch connector.
2. Install the driver door trim.
3. Install the negative (-) battery terminal.
