2011 Hyundai Tucson GL, AutomaticFACTORY OEM SERVICE PROCEDURE

Components Location

Supplemental Restraint System Control Module (SRSCM)

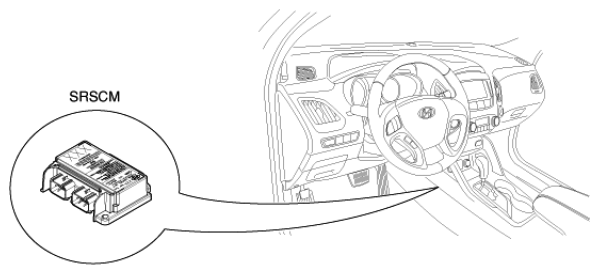

Fig 1: Identifying Supplemental Restraint System Control Module (SRSCM)

G06873277

Courtesy of HYUNDAI MOTOR CO.

Driver Airbag (DAB) / Passenger Airbag (PAB)

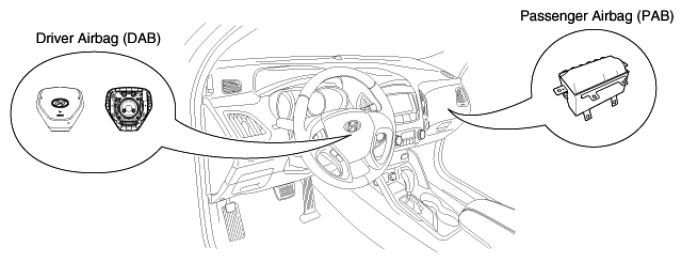

Fig 2: Identifying Driver Airbag (DAB) And Passenger Airbag (PAB)

G06873278

Courtesy of HYUNDAI MOTOR CO.

Side Airbag (SAB)

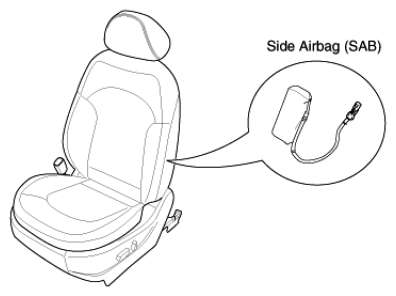

Fig 3: Identifying Side Airbag (SAB)

G06873279

Courtesy of HYUNDAI MOTOR CO.

Curtain Airbag (CAB)

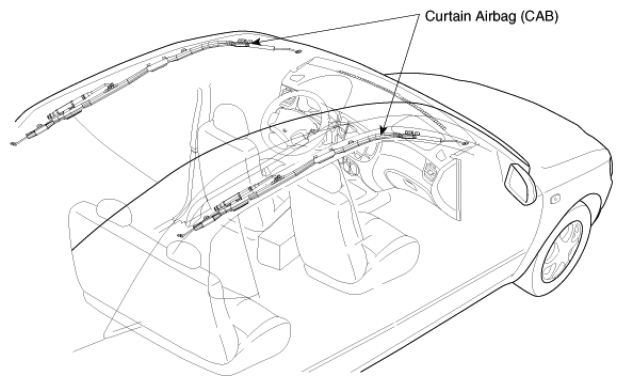

Fig 4: Identifying Curtain Airbag (CAB)

G06873280

Courtesy of HYUNDAI MOTOR CO.

Seat Belt Pretensioner (BPT)

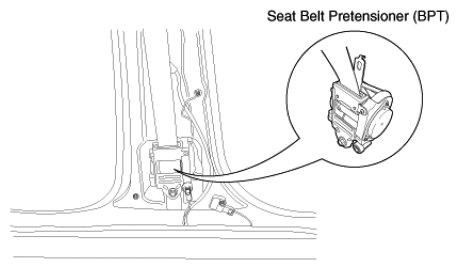

Fig 5: Identifying Seat Belt Pretensioner (BPT)

G06873281

Courtesy of HYUNDAI MOTOR CO.

Front Impact Sensor (FIS)

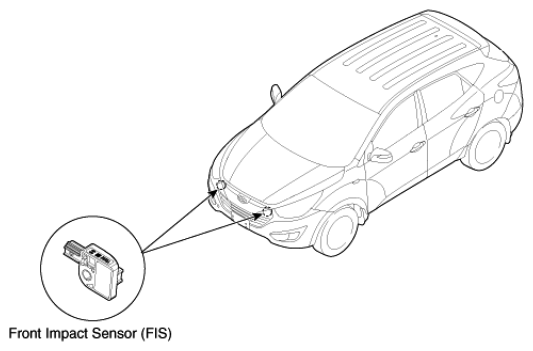

Fig 6: Identifying Front Impact Sensor (FIS)

G06873282

Courtesy of HYUNDAI MOTOR CO.

Side Impact Sensor (SIS)

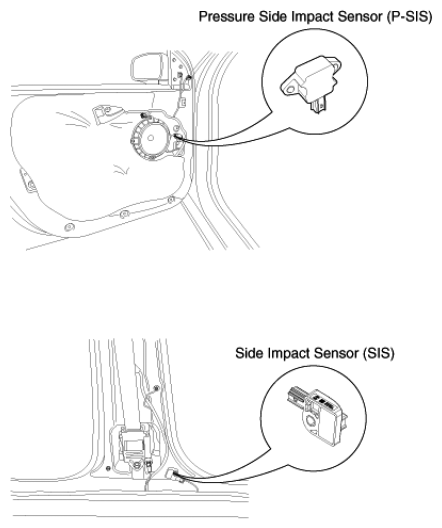

Fig 7: Identifying Side Impact Sensor (SIS) And Pressure Side Impact Sensor (P-SIS)

G06873283

Courtesy of HYUNDAI MOTOR CO.
