2011 Hyundai Genesis 3.8FACTORY OEM SERVICE PROCEDURE

PDM Diagnosis With Scan Tool

  1. It will be able to diagnose defects of Smart key with scan tool quickly. Scan tool can operates actuator forcefully, input/output value monitoring and self diagnosis.
  2. Select model and "Body control module" menu if you want to check PDM.

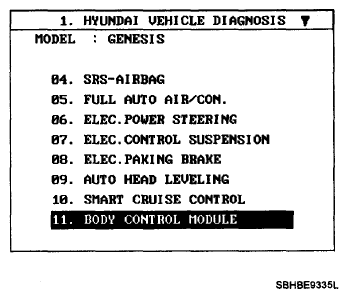

    Fig 1: Scan Tool Display - Select Model And "Body Control Module"
    G06103670Courtesy of HYUNDAI MOTOR CO.
  3. Select "PDM" in the menu.

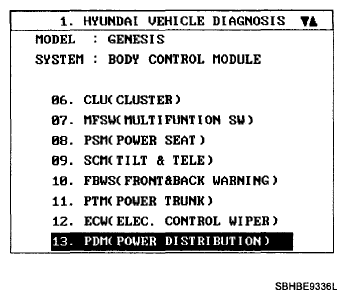

    Fig 2: Scan Tool Display - Select "PDM"
    G06103671Courtesy of HYUNDAI MOTOR CO.
  4. Select Input/output monitoring", if you want to check current data of PDM. It provides the input/output status of each module.

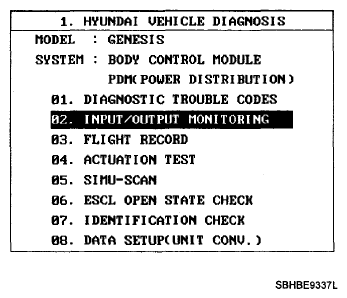

    Fig 3: Scan Tool Display - Select Input/Output Monitoring" (1 Of 3)
    G06103672Courtesy of HYUNDAI MOTOR CO.
