Temporarily install the transmission assembly by lifting the supporting jack.
NOTE: Be careful not to damage tubes, hoses or wire.

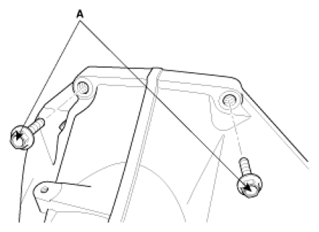

Install the mounting bolts (A-2ea) on the transmission side.
Tightening torque:

78.5~98.1 N.m(8.0~10.0 kgf.m, 57.9~72.3 lb-ft)

Fig 1: Identifying Mounting Bolts (A-2ea) On Transmission Side
Courtesy of HYUNDAI MOTOR CO.

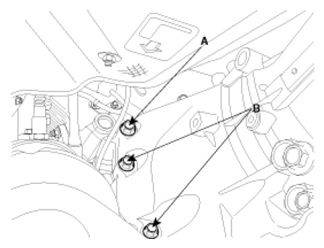

Install the mounting bolts (A-2ea) for the starter motor and the bolt (B).
Tightening torque:

[A] 49.0~63.7 N.m(5.0~6.5 kgf.m, 36.2~47.0 lb-ft)

[B] 78.5~98.1 N.m(8.0~10.0 kgf.m, 57.9~72.3 lb-ft)

Fig 2: Identifying Mounting Bolts (A-2ea) For Starter Motor And Bolt
Courtesy of HYUNDAI MOTOR CO.

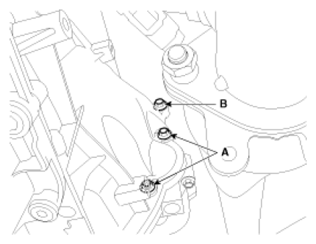

Install the three mounting bolts (A, B) left in the transmission side.
Tightening torque:

[A] 78.5~98.1 N.m(8.0~10.0 kgf.m, 57.9~72.3 lb-ft)

[B] 34.3~46.1 N.m(3.5~4.7 kgf.m, 25.3~34.0 lb-ft)

Fig 3: Identifying Mounting Bolts Left In Transmission Side
Courtesy of HYUNDAI MOTOR CO.

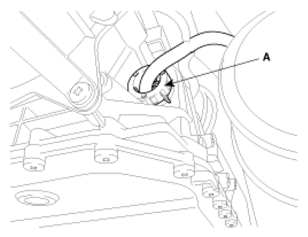

Install the CKP sensor (A).

Fig 4: Identifying CKP Sensor
Courtesy of HYUNDAI MOTOR CO.

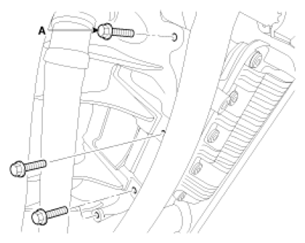

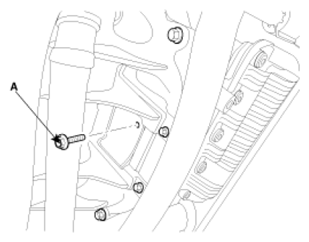

Install the mounting bolts (A-4ea) lower in the engine side.
Tightening torque:

39.2~46.1 N.m(4.0~4.7 kgf.m, 28.9~34.0 lb-ft)

Fig 5: Identifying Mounting Bolts (A-4ea) Lower In Engine Side
Courtesy of HYUNDAI MOTOR CO.
Install the torque converter mounting bolts (A-6ea) by rotating the crank shaft.
Tightening torque:

45.1~52.0 N.m(4.6~5.3 kgf.m, 33.3~38.3 lb-ft)

Fig 6: Identifying Torque Converter Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

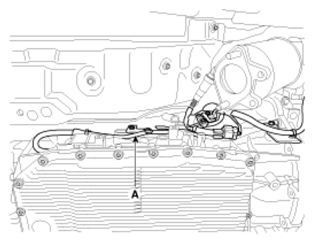

Connect the TCM connector (A).

Fig 7: Identifying TCM Connector
Courtesy of HYUNDAI MOTOR CO.
Install the serveral brackets for wire (A).

Fig 8: Identifying Bracket Wire
Courtesy of HYUNDAI MOTOR CO.
