2011 Hyundai Equus SignatureFACTORY OEM SERVICE PROCEDURE

Component Inspection

  • Check the Signal waveform of HO2S
    1. IG "OFF" and connect HO2S connector.
    2. Engine start.
    3. After warming-up, monitor signal waveform of HO2S with GDS.

      Specification:  Refer to SIGNAL WAVEFORM & DATA

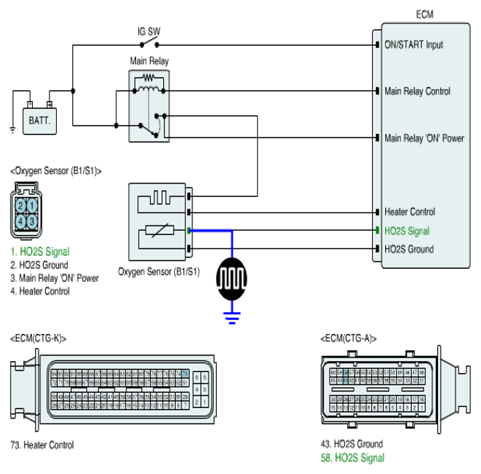

      Fig 1: Measuring Signal Waveform Between Oxygen Sensor And ECM
      G07305801Courtesy of HYUNDAI MOTOR CO.
    4. Is the sensor switching properly?

      YES

      • Go to "Check HO2S  " as below.

      NO

      • Substitute with a known - good HO2S and check for proper operation. If the problem is corrected, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  • Check HO2S
    1. IG "OFF" and disconnect HO2S connector.
    2. Check that the HO2S is securely installed.
    3. Check the HO2S for contamination or damage.
    4. Is the sensor normal?

      YES

      • Substitute with a known - good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO

      • Substitute with a known - good HO2S and check for proper operation. If the problem is corrected, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
