2011 Hyundai Equus Signature

Repair Procedures: Removal

2011 Hyundai Equus SignatureSECTION Removal

Disconnect the negative(-) battery terminal.
Remove the center fascia panel (A). (Refer to "CRASH PAD ")

Fig 1: Identifying Center Fascia Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the DIS head unit (A). (Refer to "DIS SYSTEM ")

Fig 2: Identifying DIS Head Unit
Courtesy of HYUNDAI MOTOR CO.

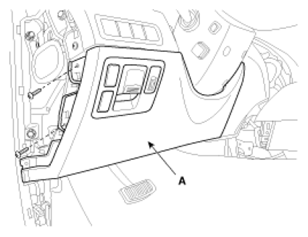

Remove the crash pad lower panel (A).

Fig 3: Identifying Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the power distribution module(A) after loosening bolt and nut.

Fig 4: Identifying Power Distribution Module
Courtesy of HYUNDAI MOTOR CO.
