PDM Diagnosis With GDS
- It will be able to diagnose defects of Smart key with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.

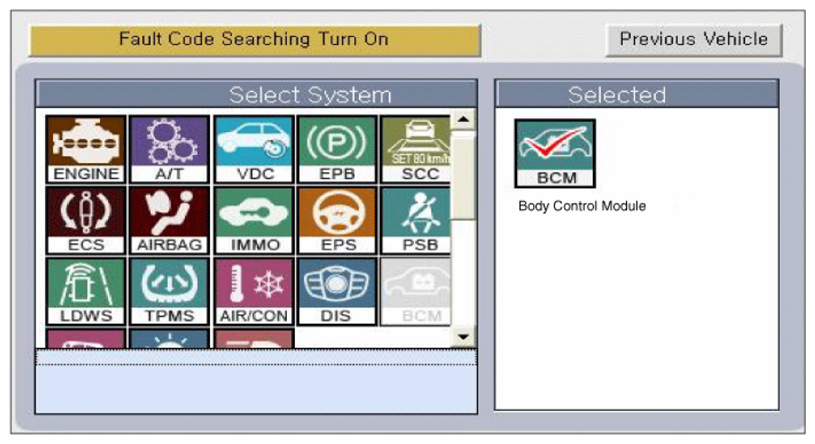

- Select model and "IPM" menu if you want to check PDM.
- Select "PDM" in the menu.
- Select Input/output monitoring", if you want to check current data of PDM. It provides the input/output status of each module.
- If you want to check PDM data operation forcefully, select "Actuation test".

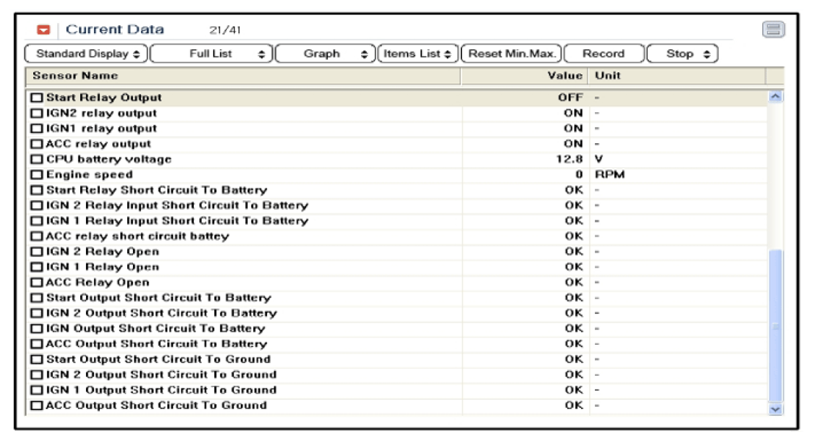

Input/output Current Data
| NO | Description | Unit |
|---|---|---|
| 1 | Load Battery Voltage | V |
| 2 | Abs Speed Sensor(main) | Km/h |
| 3 | Start Stop Button SW | OFF/ON |
| 4 | ACC input | OFF/ON |
| 5 | IGN1 Input | OFF/ON |
| 6 | IGN2 Input | OFF/ON |
| 7 | Fob In Switch | RELEASE/INSERT |
| 8 | Start Relay Monitoring Input | |
| 9 | SSB Ember LED Output | OFF/ON |
| 10 | SSB Blue LED Output | OFF/ON |
| 11 | Fob Holder Illumination Output | OFF/ON |
| 12 | SSB Illumination Output | OFF/ON |
| 13 | ACC Relay Output | OFF/ON |
| 14 | IGN1 Relay Output | OFF/ON |
| 15 | IGN2 Relay Output | OFF/ON |
| 16 | Start Relay S1 Output | OFF/ON |
| 17 | ESCL Battery Output | OFF/ON |
| 18 | ESCL GND Output | OFF/ON |
| 19 | CPU Battery Voltage | V |
| 20 | Engine Speed | DATA*1.0 |
| 21 | ACC Relay SCB | OFF/ON |
| 22 | IGN1 Relay SCB | OFF/ON |
| 23 | IGN2 Relay SCB | OFF/ON |
| 24 | Start Relay SCB | OFF/ON |
| 25 | SCC Relay Open | OFF/ON |
| 26 | IGN1 Relay Open | OFF/ON |
| 27 | IGN2 Relay Open | OFF/ON |
| 28 | ACC Output SCB | OFF/ON |
| 29 | IGN1 Output SCB | OFF/ON |
| 30 | IGN2 Output SCB | OFF/ON |
| 31 | Start Output SCB | OFF/ON |
| 32 | ACC Output SCG | OFF/ON |
| 33 | IGN1 Output SCG | OFF/ON |
| 34 | IGN2 Output SCG | OFF/ON |
| 35 | Start Output SCG | OFF/ON |

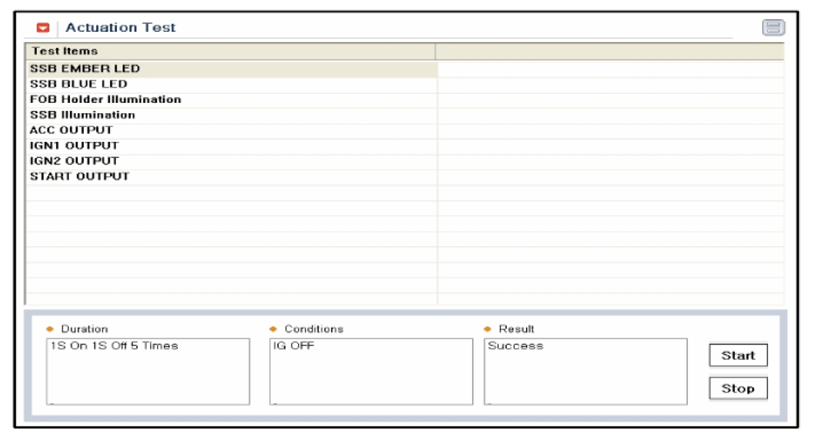

Actuation Test
| No. | Description |
|---|---|
| 1 | SSB Ember LED |
| 2 | SSB Blue LED |
| 3 | Fob Holder Illumination |
| 4 | SSB Illumination |
| 5 | ACC Output |
| 6 | ING1 Output |
| 7 | ING2 Output |
| 8 | Start Output |
