2011 Hyundai Equus Signature

Smart Key Code Saving

2011 Hyundai Equus SignatureSECTION Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Identifying Driver Side Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Select the vehicle model and then do "Smart key code saving".

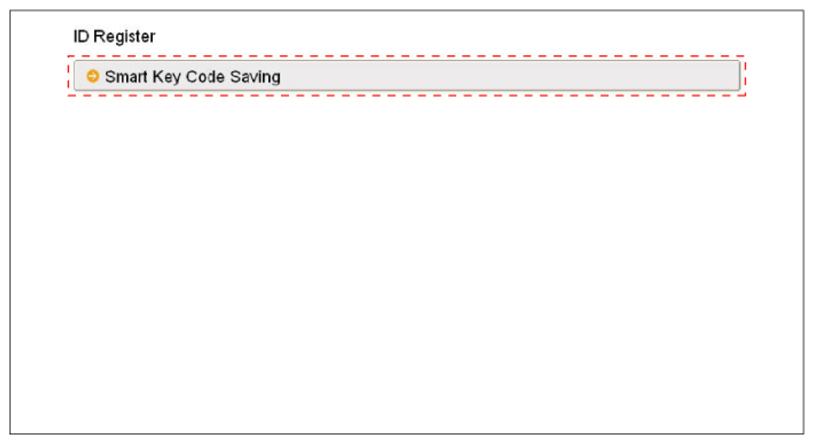

Fig 2: Selecting Smart Key Code Saving
Courtesy of HYUNDAI MOTOR CO.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

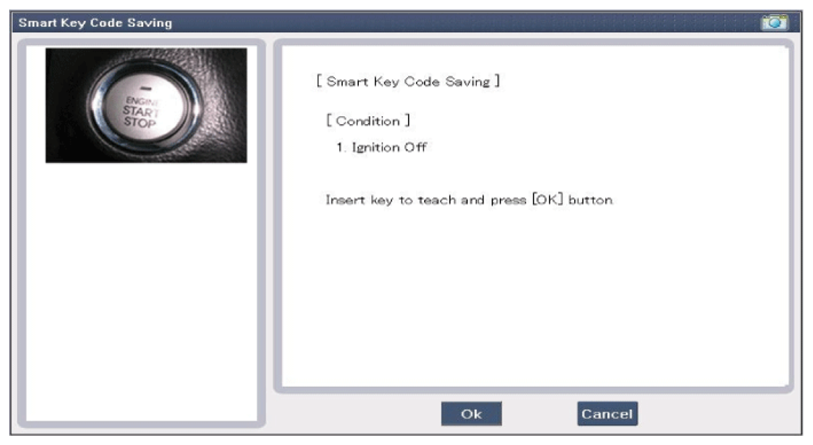

Fig 3: Display Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR CO.
After inserting the teaching key, push "ENTER" key.
Input the "Pin code" for first key teaching.

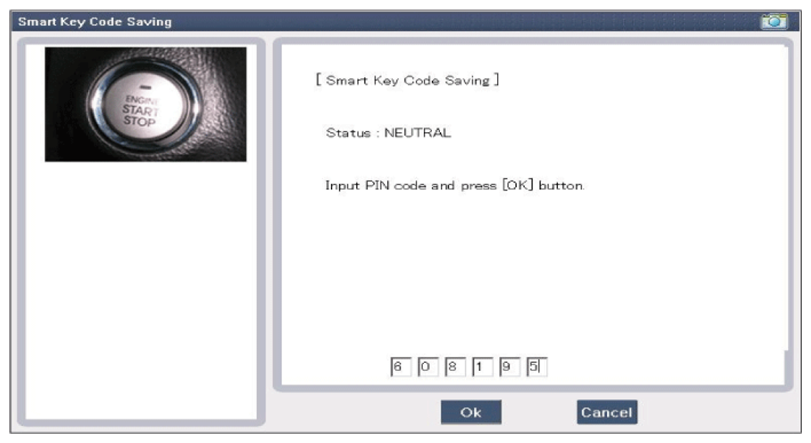

Fig 4: Display Smart Key Code Entering Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
