Control Cable Replacement
- Remove the center console assembly. (Refer to "INTERIOR (CONSOLE) " in BD group.)

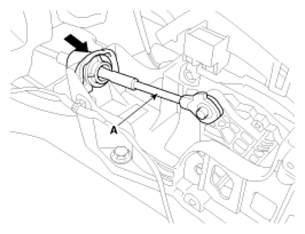

- Remove the control cable (A).

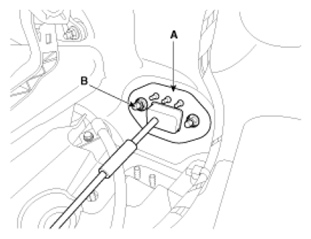

- Remove the control cable assembly in the vehicle after removing the nuts (B) and the retainer (A).
Tightening torque:
11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.9 lb-ft)

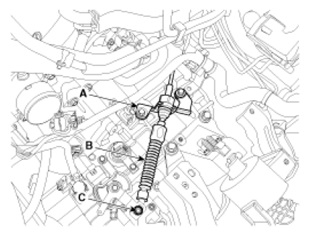

- Remove the nut (C).
Tightening torque:
9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)
- Remove the cable (B) from the bracket (A) at transaxle assembly side (Refer to "AUTOMATIC TRANSAXLE " in this group).
- Remove the control cable inside of cab.
