2011 Hyundai Elantra GLS, AutomaticFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

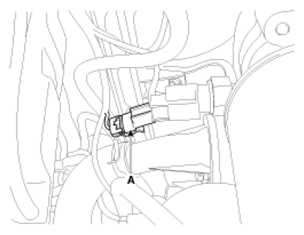

- Disconnect the knock sensor connector (A).
- Remove the intake manifold (Refer to "INTAKE AND EXHAUST SYSTEM " in EM group).

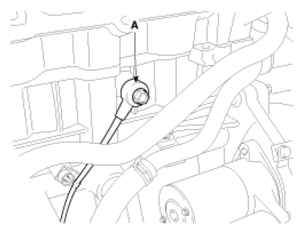

- Remove the installation bolt (A), and then remove the sensor from the cylinder block.
