2011 Hyundai Elantra GLS, AutomaticFACTORY OEM SERVICE PROCEDURE
ECM Terminal And Input/Output signal (M/T)
ECM Terminal Function

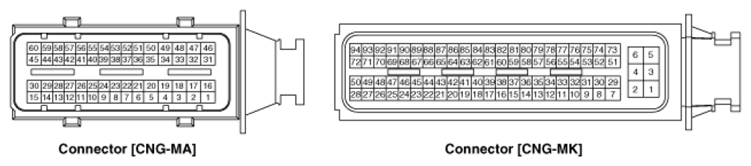

CONNECTOR [CNG-MA]
| Pin No. | Description | Connected to |
|---|---|---|
| 1 | Ignition Coil (Cylinder #1) control output | Ignition Coil (Cylinder #1) [Without Immobilizer] |
| Ignition Coil (Cylinder #4) control output | Ignition Coil (Cylinder #4) [With Immobilizer] | |
| 2 | Injector (Cylinder #1) control output | Injector (Cylinder #1) |
| 3 | - | |
| 4 | - | |
| 5 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] Heater control output | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] |
| 6 | Sensor ground | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] |
| 7 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] signal input | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] |
| 8 | Knock Sensor (KS) signal input | Knock Sensor (KS) |
| 9 | Intake Air Temperature Sensor (IATS) signal input | Intake Air Temperature Sensor (IATS) |
| 10 | Start Motor control switch | Power Distribution Module (PDM) |
| 11 | Electrical load signal input | Alternator |
| 12 | Engine Coolant Temperature Sensor (ECTS) signal input | Engine Coolant Temperature Sensor (ECTS) |
| 13 | Throttle Position Sensor (TPS) 1 signal input | Throttle Position Sensor (TPS) 1 |
| 14 | Sensor power (+5V) | Throttle Position Sensor (TPS) 1,2 |
| 15 | ETC Motor [+] control output | ETC Motor |
| 16 | Ignition Coil (Cylinder #3) control output | Ignition Coil (Cylinder #3) [Without Immobilizer] |
| Ignition Coil (Cylinder #2) control output | Ignition Coil (Cylinder #2) [With Immobilizer] | |
| 17 | Injector (Cylinder #3) control output | Injector (Cylinder #3) |
| 18 | Purge Control Solenoid Valve (PCSV) control output | Purge Control Solenoid Valve (PCSV) |
| 19 | Variable Intake Solenoid (VIS) Valve control output | Variable Intake Solenoid (VIS) Valve |
| 20 | - | |
| 21 | - | |
| 22 | Sensor shield ground | Knock Sensor (KS) |
| 23 | Sensor ground | Knock Sensor (KS) |
| 24 | Sensor ground | Manifold Absolute Pressure Sensor (MAPS) |
| 25 | Sensor ground | Battery Sensor |
| 26 | - | |
| 27 | Sensor ground | Engine Coolant Temperature Sensor (ECTS) |
| 28 | Throttle Position Sensor (TPS) 2 signal input | Throttle Position Sensor (TPS) 2 |
| 29 | Sensor ground | Throttle Position Sensor (TPS) 1,2 |
| 30 | ETC Motor [-] control output | ETC Motor |
| 31 | Ignition Coil (Cylinder #4) control output | Ignition Coil (Cylinder #4) [Without Immobilizer] |
| Ignition Coil (Cylinder #1) control output | Ignition Coil (Cylinder #1) [With Immobilizer] | |
| 32 | Injector (Cylinder #4) control output | Injector (Cylinder #4) |
| 33 | CVVT Oil Control (OCV) Valve [Bank 1/Intake] control output | CVVT Oil Control Valve (OCV) [Bank 1/Intake] |
| 34 | CVVT Oil Control (OCV) Valve [Bank 1/Exhaust] control output | CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] |
| 35 | Sensor power (+5V) | Variable Charge Motion Actuator (VCMA) |
| Battery Sensor | ||
| 36 | VG (Virtual Ground) | Heated Oxygen Sensor [Bank 1/Sensor 1] |
| 37 | VIP (Current Pump) | Heated Oxygen Sensor [Bank 1/Sensor 1] |
| 38 | VRC (Current Adjust) | Heated Oxygen Sensor [Bank 1/Sensor 1] |
| 39 | Manifold Absolute Pressure Sensor (MAPS) signal input | Manifold Absolute Pressure Sensor (MAPS) |
| 40 | Battery Sensor signal | Battery Sensor |
| 41 | Sensor ground | Crankshaft Position Sensor (CKPS) |
| 42 | Sensor ground | Camshaft Position Sensor (CMPS) [Bank 1/Exhaust] |
| 43 | Sensor ground | Camshaft Position Sensor (CMPS) [Bank 1/Intake] |
| 44 | Sensor ground | Variable Charge Motion Actuator (VCMA) |
| 45 | Motor [+] control output | Variable Charge Motion Actuator (VCMA) |
| 46 | Ignition Coil (Cylinder #2) control output | Ignition Coil (Cylinder #2) [Without Immobilizer] |
| Ignition Coil (Cylinder #3) control output | Ignition Coil (Cylinder #3) [With Immobilizer] | |
| 47 | Injector (Cylinder #2) control output | Injector (Cylinder #2) |
| 48 | - | |
| 49 | Alternator PWM control output | Alternator |
| 50 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] Heater control output | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] |
| 51 | - | |
| 52 | VN (NERNST Cell Voltage) | Heated Oxygen Sensor [Bank 1/Sensor 1] |
| 53 | - | |
| 54 | Sensor power (+5V) | Manifold Absolute Pressure Sensor (MAPS) |
| 55 | Battery Current Direct input | Battery Sensor |
| 56 | Crankshaft Position Sensor (CKPS) signal input | Crankshaft Position Sensor (CKPS) |
| 57 | Camshaft Position Sensor (CMPS) [Bank 1/Exhaust] signal input | Camshaft Position Sensor (CMPS) [Bank 1/Exhaust] |
| 58 | Camshaft Position Sensor (CMPS) [Bank 1/Intake] signal input | Camshaft Position Sensor (CMPS) [Bank 1/Intake] |
| 59 | Sensor feedback signal input | Variable Charge Motion Actuator (VCMA) |
| 60 | Motor [-] control output | Variable Charge Motion Actuator (VCMA) |
CONNECTOR [CNG-MK]
| Pin No. | Description | Connected to |
|---|---|---|
| 1 | Power ground | Chassis Ground |
| 2 | Battery power (B+) | Main Relay |
| 3 | Power ground | Chassis Ground |
| 4 | Battery power (B+) | Main Relay |
| 5 | Power ground | Chassis Ground |
| 6 | Battery power (B+) | Main Relay |
| 7 | - | |
| 8 | - | |
| 9 | - | |
| 10 | - | |
| 11 | A/C Compressor Relay control output | A/C Compressor Relay |
| 12 | Engine speed signal output | Power Distribution Module (PDM) |
| 13 | - | |
| 14 | - | |
| 15 | Fuel Tank Pressure Sensor (FTPS) signal input | Fuel Tank Pressure Sensor (FTPS) |
| 16 | - | |
| 17 | - | |
| 18 | - | |
| 19 | - | |
| 20 | Electrical load [Wiper] signal input | Wiper [Low] Relay |
| 21 | - | |
| 22 | - | |
| 23 | - | |
| 24 | - | |
| 25 | Fuel Level Sensor (FLS) signal input | Fuel Level Sensor (FLS) |
| 26 | - | |
| 27 | - | |
| 28 | - | |
| 29 | - | |
| 30 | - | |
| 31 | - | |
| 32 | - | |
| 33 | - | |
| 34 | Immobilizer Lamp control output | Immobilizer Lamp |
| 35 | - | |
| 36 | Canister Close Valve (CCV) control output | Canister Close Valve (CCV) |
| 37 | Sensor ground | Fuel Tank Pressure Sensor (FTPS) |
| 38 | - | |
| 39 | - | |
| 40 | - | |
| 41 | - | |
| 42 | - | |
| 43 | - | |
| 44 | - | |
| 45 | Sensor ground | A/C Pressure Transducer (APT) |
| 46 | - | |
| 47 | Sensor ground | Fuel Level Sensor (FLS) |
| 48 | - | |
| 49 | Sensor ground | Accelerator Position Sensor (APS) 1 |
| 50 | Sensor ground | Accelerator Position Sensor (APS) 2 |
| 51 | Battery power (B+) | Ignition Switch |
| 52 | Start Motor relay control output | Start Motor relay |
| 53 | Cooling Fan Relay [High] control output | Cooling Fan Relay [High] |
| 54 | Cooling Fan Relay [Low] control output | Cooling Fan Relay [Low] |
| 55 | CCP CAN [High] | Other control module, Data Link Connector (DLC), |
| 56 | CCP CAN [Low] | Other control module, Data Link Connector (DLC), |
| 57 | - | |
| 58 | - | |
| 59 | - | |
| 60 | - | |
| 61 | - | |
| 62 | Brake Test Switch signal input | Brake Switch |
| 63 | - | |
| 64 | Blower Max. signal input | Heater & A/C Control module |
| 65 | - | |
| 66 | - | |
| 67 | A/C Pressure Transducer (APT) signal input | A/C Pressure Transducer (APT) |
| 68 | A/C Compressor switch signal output | A/C Compressor switch |
| 69 | Immobilizer communication line | Immobilizer control module |
| 70 | - | |
| 71 | Accelerator Position Sensor (APS) 1 signal input | Accelerator Position Sensor (APS) 1 |
| 72 | Accelerator Position Sensor (APS) 2 signal input | Accelerator Position Sensor (APS) 2 |
| 73 | Battery power (B+) | Battery |
| 74 | Main Relay control output | Main Relay |
| 75 | Fuel Pump Relay control output | Fuel Pump Relay |
| 76 | - | |
| 77 | C-CAN [High] | Other control module, Data Link Connector (DLC), |
| 78 | C-CAN [Low] | Other control module, Data Link Connector (DLC), |
| 79 | Clutch switch signal input | Clutch switch |
| 80 | Vehicle speed signal input | ABS/ESC Control Unit |
| 81 | - | |
| 82 | - | |
| 83 | - | |
| 84 | Brake Light Switch signal input | Brake Switch |
| 85 | - | |
| 86 | - | |
| 87 | - | |
| 88 | Sensor power (+5V) | Fuel Tank Pressure Sensor (FTPS) |
| A/C Pressure Transducer (APT) | ||
| 89 | - | |
| 90 | A/C request switch signal output | Heater & A/C Control module |
| 91 | - | |
| 92 | - | |
| 93 | Sensor power (+5V) | Accelerator Position Sensor (APS) 1 |
| 94 | Sensor power (+5V) | Accelerator Position Sensor (APS) 2 |
ECM Terminal Input/Output signal
CONNECTOR [CNG-MA]
| Pin No. | Description | Condition | Type | Level |
|---|---|---|---|---|
| 1 | Ignition Coil (Cylinder #1) control output | Idle | Pulse | Turn on: Max. 1.6V Turn off: Battery voltage |
| Ignition Coil (Cylinder #4) control output | ||||
| 2 | Injector (Cylinder #1) control output | Idle | DC | Hi: Battery voltage |
| LO: Max. 0.5V | ||||
| 48~50V | ||||
| 3 | - | |||
| 4 | - | |||
| 5 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] Heater control output | Relay OFF | DC | Battery voltage |
| Relay ON | Max. 0.5V | |||
| 6 | Sensor ground | Idle | DC | Max. 0.5V |
| 7 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] signal input | Idle | Analog DC |
Min. 0.6V ~ Max. 1.0V |
| 8 | Knock Sensor (KS) signal input | Idle | Analog/Frequency | Freq.: Min. 8KHz ~ Max. 12KHz Level: Min. 180 ~ Max. 300mVpp |
| 9 | Intake Air Temperature Sensor (IATS) signal input | Idle | Analog | Min. 0.1V ~ Max. 4.7V |
| 10 | Start Motor control switch | Switch ON | Digital | Battery voltage |
| Switch OFF | Min. -0.3V ~ Max. 0.5V | |||
| 11 | Electrical load signal input | Idle | PWM | Freq.: 125Hz or 200Hz or 60Hz Duty rate 0% ~ 100% |
| 12 | Engine Coolant Temperature Sensor (ECTS) signal input | Idle | Analog | Min. 0.1V ~ Max. 4.7V |
| 13 | Throttle Position Sensor (TPS) 1 signal input | Idle | Analog | Min. 0.4V ~ Max. 4.5V |
| 14 | Sensor power (+5V) | IG OFF | DC | Max. 0.5V |
| IG ON | Min. 4.75V ~ Max. 5.25V | |||
| 15 | ETC Motor [+] control output | Idle | PWM | Operating freq.: 1000Hz (estimated) |
| Forward direction Turn on: Battery voltage Frewheeling: Max. 0.1V |
||||
| Reverse direction Turn on: Max. 0.1V Frewheeling: Max. 0.1V |
||||
| 16 | Ignition Coil (Cylinder #3) control output | Idle | Pulse | Turn on: Max. 1.6V Turn off: Battery voltage |
| Ignition Coil (Cylinder #2) control output | ||||
| 17 | Injector (Cylinder #3) control output | Idle | DC | Hi: Battery voltage |
| LO: Max. 0.5V | ||||
| 48~50V | ||||
| 18 | Purge Control Solenoid Valve (PCSV) control output | Relay OFF | DC | Battery voltage |
| Relay ON | Max. 1.76V | |||
| 19 | Variable Intake Solenoid (VIS) Valve control output | Relay OFF | DC | Battery voltage |
| Relay ON | Max. 1.76V | |||
| 20 | - | |||
| 21 | - | |||
| 22 | Sensor shield ground | Idle | DC | Max. 0.5V |
| 23 | Sensor ground | Idle | DC | Max. 0.5V |
| 24 | Sensor ground | Idle | DC | Max. 0.5V |
| 25 | Sensor ground | Idle | DC | Max. 0.5V |
| 26 | - | |||
| 27 | Sensor ground | Idle | DC | Max. 0.5V |
| 28 | Throttle Position Sensor (TPS) 2 signal input | Idle | Analog | Min. 0.4V ~ Max. 4.5V |
| 29 | Sensor ground | Idle | DC | Max. 0.5V |
| 30 | ETC Motor [-] control output | Idle | PWM | Operating freq.: 1000Hz (estimated) |
| Forward direction Turn on: max 0.1V Frewheeling: max 0.1V |
||||
| Reverse direciton Turn on: Battery voltage Frewheeling: max 0.1V |
||||
| 31 | Ignition Coil (Cylinder #4) control output | Idle | Pulse | Turn on: Max. 1.6V Turn off: Battery voltage |
| Ignition Coil (Cylinder #1) control output | ||||
| 32 | Injector (Cylinder #4) control output | Idle | DC | Hi: Battery voltage |
| LO: Max. 0.5V | ||||
| 48~50V | ||||
| 33 | CVVT Oil Control (OCV) Valve [Bank 1/Intake] control output | Idle | PWM | Operating freq. range: 300Hz Duty rate: 0% ~ 100% |
| 34 | CVVT Oil Control (OCV) Valve [Bank 1/Exhaust] control output | Idle | PWM | Operating freq. range: 300Hz Duty rate: 0% ~ 100% |
| 35 | Sensor power (+5V) | IG OFF | DC | Max. 0.5V |
| IG ON | Min. 4.75V ~ Max. 5.25V | |||
| 36 | VG (Virtual Ground) | Idle | Analog | Min. 0.2V ~ Max. 5.2V |
| 37 | VIP (Current Pump) | Idle | Analog | Min. 0.2V ~ Max. 5.2V |
| 38 | VRC (Current Adjust) | Idle | Analog | Min. 0.2V ~ Max. 5.2V |
| 39 | Manifold Absolute Pressure Sensor (MAPS) signal input | Idle | Analog | Min. 0.8V ~ Max. 4.2V |
| 40 | Battery Sensor signal | Idle | Analog | Min. 0.3V ~ Max. 4.7V |
| 41 | Crankshaft Position Sensor (-) signal input | Idle | Frequency | Vpp Min.: 18V at Idle (for 1 rail) Vpp Max.: 90V at 5000rpm (for 1 rail) |
| 42 | Sensor ground | Idle | DC | Max. 0.5V |
| 43 | Sensor ground | Idle | DC | Max. 0.5V |
| 44 | Sensor ground | Idle | DC | Max. 0.5V |
| 45 | Motor [+] control output | Idle | PWM | Operating freq.: 1000Hz (estimated) |
| Forward direction Turn on: Battery voltage Frewheeling: Max. 0.1V |
||||
| Reverse direction Turn on: Max. 0.1V Frewheeling: Max. 0.1V |
||||
| 46 | Ignition Coil (Cylinder #2) control output | Idle | Pulse | Turn on: Max. 1.6V Turn off: Battery voltage |
| Ignition Coil (Cylinder #3) control output | ||||
| 47 | Injector (Cylinder #2) control output | Idle | DC | Hi: Battery voltage |
| LO: Max. 0.5V | ||||
| 48~50V | ||||
| 48 | - | |||
| 49 | Alternator PWM control output | IG OFF | PWM | Battery voltage |
| IG ON | Max. 0.5V | |||
| 50 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] Heater control output | Relay OFF | DC | Battery voltage |
| Relay ON | Max. 0.5V | |||
| 51 | - | |||
| 52 | VN (NERNST Cell Voltage) | Idle | Analog | Min. 0.2V ~ Max. 5.2V |
| 53 | - | |||
| 54 | Sensor power (+5V) | IG OFF | DC | Max. 0.5V |
| IG ON | Min. 4.75V ~ Max. 5.25V | |||
| 55 | Battery Current Direct Input | Idle | Analog | Min. 0.4V ~ Max. 4.5V |
| 56 | Crankshaft Position Sensor (+) signal input | Idle | Frequency | Vpp Min.: 18V at Idle (for 1 rail) Vpp Max.: 90V at 5000rpm (for 1 rail) |
| 57 | Camshaft Position Sensor (CMPS) [Bank 1/Exhaust] signal input | Idle | Pulse | Around 7Hz at 850rpm |
| Around 25Hz at 3000rpm | ||||
| 58 | Camshaft Position Sensor (CMPS) [Bank 1/Intake] signal input | Idle | Pulse | Around 7Hz at 850rpm |
| Around 25Hz at 3000rpm | ||||
| 59 | Sensor feedback signal input | Idle | Analog | Min. 0.1V ~ Max. 4.6V |
| 60 | Motor [-] control output | Idle | PWM | Operating freq.: 1000Hz (estimated) |
| Forward direction Turn on: max 0.1V Frewheeling: max 0.1V |
||||
| Reverse direciton Turn on: Battery voltage Frewheeling: max 0.1V |
CONNECTOR [CNG-MK]
| Pin No. | Description | Condition | Type | Level |
|---|---|---|---|---|
| 1 | Power ground | Idle | DC | Max. 50mV |
| 2 | Battery power (B+) | IG OFF | DC | Max. 0.5V |
| IG ON | Battery Voltage | |||
| 3 | Power ground | Idle | DC | Max. 50mV |
| 4 | Battery power (B+) | IG OFF | DC | Max. 0.5V |
| IG ON | Battery Voltage | |||
| 5 | Power ground | Idle | DC | Max. 50mV |
| 6 | Battery power (B+) | IG OFF | DC | Max. 0.5V |
| IG ON | Battery Voltage | |||
| 7 | - | |||
| 8 | - | |||
| 9 | - | |||
| 10 | - | |||
| 11 | A/C Compressor Relay control output | Relay OFF | DC | Battery voltage |
| Relay ON | Min. -0.3V ~Max. 1.2V | |||
| 12 | Engine speed signal output | Idle | Frequency | Around 26Hz at 850rpm, idle |
| Around 16Hz at 3000rpm | ||||
| 13 | - | |||
| 14 | - | |||
| 15 | Fuel Tank Pressure Sensor (FTPS) signal input | Idle | Analog | Min. 0.4V ~Max. 4.6V |
| 16 | - | |||
| 17 | - | |||
| 18 | - | |||
| 19 | - | |||
| 20 | Electrical load [Wiper] signal input | Idle | PWM | Battery voltage |
| 21 | - | |||
| 22 | - | |||
| 23 | - | |||
| 24 | - | |||
| 25 | Fuel Level Sensor (FLS) signal input | Idle | Analog | Min. 0.2V ~Max. 4.7V |
| 26 | - | |||
| 27 | - | |||
| 28 | - | |||
| 29 | - | |||
| 30 | - | |||
| 31 | - | |||
| 32 | - | |||
| 33 | - | |||
| 34 | Immobilizer Lamp control output | Lamp ON | DC | Min. -0.3V ~ Max. 1.2V |
| Lamp OFF | Battery voltage | |||
| 35 | - | |||
| 36 | Canister Close Valve (CCV) control output | Inactive | DC | Min. -0.3V ~ Max. 1.2V |
| Active | Battery voltage | |||
| 37 | Sensor ground | Idle | DC | Max. 50mV |
| 38 | - | |||
| 39 | - | |||
| 40 | - | |||
| 41 | - | |||
| 42 | - | |||
| 43 | - | |||
| 44 | - | |||
| 45 | Sensor ground | Idle | DC | Max. 50mV |
| 46 | - | |||
| 47 | Sensor ground | Idle | DC | Max. 50mV |
| 48 | - | |||
| 49 | Sensor ground | Idle | DC | Max. 50mV |
| 50 | Sensor ground | Idle | DC | Max. 50mV |
| 51 | Battery power (B+) | IG OFF | DC | Max. 0.5V |
| IG ON | Battery Voltage | |||
| 52 | Start Motor relay control output | IG OFF | DC | Battery voltage |
| IG ON | Min. -0.3V ~Max. 1.2V | |||
| 53 | Cooling Fan Relay [High] control output | IG OFF | DC | Battery voltage |
| IG ON | Min. -0.3V ~Max. 1.2V | |||
| 54 | Cooling Fan Relay [Low] control output | IG OFF | PWM | Battery voltage |
| IG ON | Min. -0.3V ~Max. 1.2V | |||
| 55 | CCP CAN [High] | RECESSIVE | Pulse | 2.0~3.0V |
| DOMINANT | 2.75~4.5V | |||
| 56 | CCP CAN [Low] | RECESSIVE | Pulse | 2.0~3.0V |
| DOMINANT | 0~0.5V | |||
| 57 | - | |||
| 58 | - | |||
| 59 | - | |||
| 60 | - | |||
| 61 | - | |||
| 62 | Brake Test Switch signal input | Switch ON | Digital | Battery voltage |
| Switch OFF | Min. -0.3V ~Max. 0.5V | |||
| 63 | - | |||
| 64 | Blower Max.. signal input | Idle | Analog | Min. 0.5V ~Max. 4V |
| 65 | - | |||
| 66 | - | |||
| 67 | A/C Pressure Transducer (APT) signal input | Idle | Analog | Min. 0.4V ~Max. 4.6V |
| 68 | A/C Compressor switch signal output | Swich ON | Digital | Battery voltage |
| Switch OFF | Min. -0.3V ~Max. 0.5V | |||
| 69 | Immobilizer communication line | When communicating after IG ON | Pulse | Hi: Min. 8.5V |
| Lo: Max. 3.5V | ||||
| 70 | - | |||
| 71 | Accelerator Position Sensor (APS) 1 signal input | Idle | Analog | Min. 0.6V ~Max. 4.3V |
| 72 | Accelerator Position Sensor (APS) 2 signal input | Idle | Analog | Min. 0.3V ~Max. 2.1V |
| 73 | Battery power (B+) | IG OFF | DC | Min. -.03V ~Max. 1.2V |
| IG ON | Battery Voltage | |||
| 74 | Main Relay control output | IG OFF | DC | Min. -.03V ~Max. 1.2V |
| IG ON | Battery Voltage | |||
| 75 | Fuel Pump Relay control output | Relay OFF | DC | Battery Voltage |
| Relay ON | Min. -.03V ~Max. 1.2V | |||
| 76 | - | |||
| 77 | C-CAN [High] | RECESSIVE | Pulse | 2.0~3.0V |
| DOMINANT | 2.75~4.5V | |||
| 78 | C-CAN [Low] | RECESSIVE | Pulse | 2.0~3.0V |
| DOMINANT | 0~0.5V | |||
| 79 | Clutch switch signal input | Swich ON | Digital | Min. -0.3V ~Max. 0.5V |
| Switch OFF | Battery voltage | |||
| 80 | Vehicle speed signal input | Idle | Frequency | Duty rate 40% ~ 60% |
| 81 | - | |||
| 82 | - | |||
| 83 | - | |||
| 84 | Brake Light Switch signal input | Swich ON | Digital | Battery voltage |
| Switch OFF | Min. -0.3V ~Max. 0.5V | |||
| 85 | - | |||
| 86 | - | |||
| 87 | - | |||
| 88 | Sensor power (+5V) | IG OFF | DC | Max. 0.5V |
| IG ON | 4.75 ~ 5.25V | |||
| 89 | - | |||
| 90 | A/C request switch signal output | Swich ON | Digital | Battery voltage |
| Switch OFF | Min. -0.3V ~Max. 0.5V | |||
| 91 | - | |||
| 92 | - | |||
| 93 | Sensor power (+5V) | IG OFF | DC | Max. 0.5V |
| IG ON | 4.75 ~ 5.25V | |||
| 94 | Sensor power (+5V) | IG OFF | DC | Max. 0.5V |
| IG ON | 4.75 ~ 5.25V |
Factory Service Tools
Use the Manual With the Right Hardware
Pair factory procedures with proven DIY tools so the instructions are easier to execute.
Disclosure: Verified tool recommendations may earn an affiliate commission at no cost to you.
When to See a Mechanic
Stop DIY work and contact a certified mechanic immediately if any of the following apply:
- • You smell fuel, burning insulation, or see smoke.
- • Brakes feel soft, pull hard to one side, or make grinding noises.
- • The engine overheats, stalls repeatedly, or misfires under load.
- • You are missing required tools, torque specs, or safe lifting equipment.
- • You are not confident in the next step or safety outcome.
Rather have a pro handle this?
A certified mobile mechanic comes to your home or office. They bring the tools, you stay comfortable. No tow truck, no waiting room, no surprises.
Comes to youSame-day available12-month warranty
Get a Free QuoteNo obligation. See pricing before you book.
