2011 Hyundai Elantra GLS, AutomaticFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
WARNING:
- DON'T remove the camshaft position sensor during engine running or right after engine stops, or a scald by the flowed out engine oil may occur.

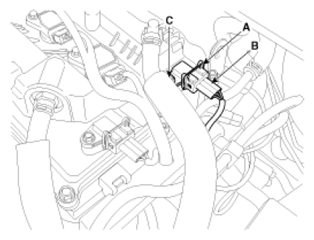

[Bank 1/Intake]
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Disconnect the camshaft position sensor connector (B) after removing the clip (A).
- Remove the installation bolt (C), and then remove the sensor.

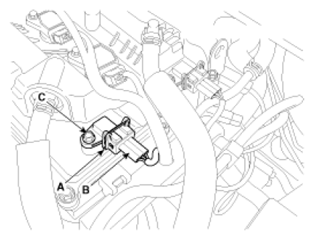

[Bank 1/Exhaust]
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Disconnect the camshaft position sensor connector (B) after removing the clip (A).
- Remove the installation bolt (C), and then remove the sensor.
