2011 Hyundai Azera V6-3.8LFACTORY OEM SERVICE PROCEDURE
Wiring Repair
Wiring Repair

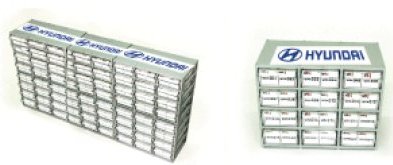

- WRKII Standard Kit "GHWRK2"
Total 117 Connectors well designed to repair automotive wiring Haness instead of whole parts with wiring harness replacement (1 set of connector = 5 connectors each)
- Effective to save the labor & parts cost and reduce time to complete the service on vehicle
- Total 72 slot with enough space for 10 connectors in each slot except big size connectors
REWORK PROCEDURE
1. Use of WRKII Tool Set (GHWRK2T)
1. Disconnect the battery cable.
2. Choose the correct clamping slot for the wire and strip off the wire coat.
- If the incorrect crimping slot is used, the terminal may be damaged and may not fit into the connector.
2. Use of In-line solder (GHWRK2T-SDR01) and Shrink tube set (GHWRK2T-STS03, 05, 09, 12)
1. Strip off about 5mm of the wire coat at the end of the wires.
2. Insert each wire into the opposite ends of the in-line solder and crimp using a wire stripper.
3. Put the shrink tube over the connection area and shrink the tube using an electrical hot gun.
4. The shrink tube should be securely wrapped around the soldering are and exposed wiring.
3. Use of WRKII Removable Tool (WRKRT10000)
- Flat tip type: Removal of single locking male/female terminal from the connector
1. Remove the front or rear retainer (holder,stopper) of the connector.
2. Ensure that the tip of the tools inserted into the gap between the elastic arm of key and terminal.
3. Remove the terminal and check the terminal condition, if it is damaged, replace it with a new terminal
- Double tip type: Removal of double locking male/female terminal from the connector.
- WRKII Standard Kit "GHWRK2"
Total 117 Connectors well designed to repair automotive wiring Haness instead of whole parts with wiring harness replacement (1 set of connector = 5 connectors each)
- Effective to save the labor & parts cost and reduce time to complete the service on vehicle
- Total 72 slot with enough space for 10 connectors in each slot except big size connectors
REWORK PROCEDURE
1. Use of WRKII Tool Set (GHWRK2T)
1. Disconnect the battery cable.
2. Choose the correct clamping slot for the wire and strip off the wire coat.
- If the incorrect crimping slot is used, the terminal may be damaged and may not fit into the connector.
2. Use of In-line solder (GHWRK2T-SDR01) and Shrink tube set (GHWRK2T-STS03, 05, 09, 12)
1. Strip off about 5mm of the wire coat at the end of the wires.
2. Insert each wire into the opposite ends of the in-line solder and crimp using a wire stripper.
3. Put the shrink tube over the connection area and shrink the tube using an electrical hot gun.
4. The shrink tube should be securely wrapped around the soldering are and exposed wiring.
3. Use of WRKII Removable Tool (WRKRT10000)
- Flat tip type: Removal of single locking male/female terminal from the connector
1. Remove the front or rear retainer (holder,stopper) of the connector.
2. Ensure that the tip of the tools inserted into the gap between the elastic arm of key and terminal.
3. Remove the terminal and check the terminal condition, if it is damaged, replace it with a new terminal
- Double tip type: Removal of double locking male/female terminal from the connector.
