Repair Procedures: Removal
- Set room side lever and T/M side lever to "N" position.
- Remove the battery and the battery tray. (Refer to REMOVAL AND INSTALLATION .)
- Remove the air cleaner assembly. (Refer to INTAKE MANIFOLD .)

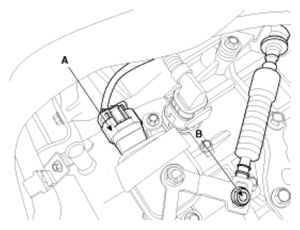

- Remove the shift cable mounting nut (B).
Tightening torque:
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
- Disconnect the inhibitor switch connector (A).

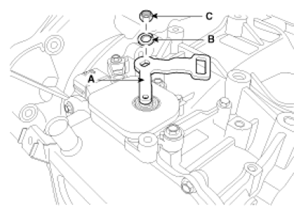

- Remove the manual control lever (A) and the washer (B) after removing a nut (C).
