Repair Procedures: Removal
- Remove the knob (A).

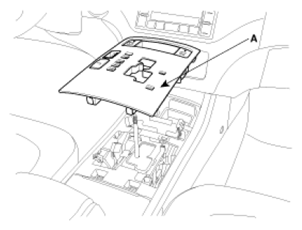

- Remove the Indicator assembly (A).
- Remove the center console assembly. (Refer to "INTERIOR " in BD group.)

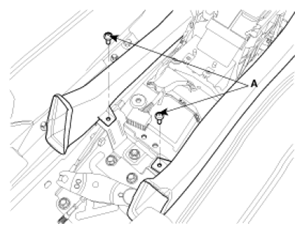

- Remove the two screws (A) mounting floor air duct.

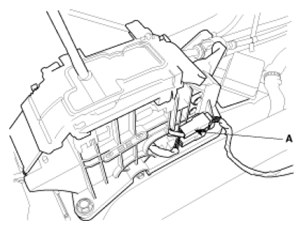

- Shift lever assembly connector (A).

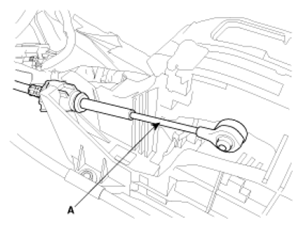

- Remove the shift cable (A).

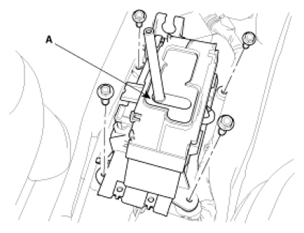

- Remove the shift lever assembly (B) by removing the bolts (A-4ea).
Tightening torque:
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
- Remove the shift cable assembly in the vehicle after removing the nuts (B) and the retainer (A).
Tightening torque:
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
- Remove the cable from the bracket at transaxle assembly side (Refer to "AUTOMATIC TRANSAXLE " in this group).
- Remove the shift cable at cabin room.
