The TDC marks of the intake and exhaust CVVT sprockets are slightly turned from the TDC position as shown when the timing chain is removed.

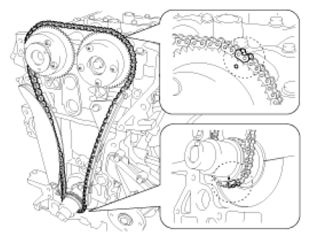

Fig 1: Identifying TDC Marks
Turn the crankshaft clockwise (about 2~3 pitches) from the TDC position (the dowel pin (A) of crankshaft is about 3° with the engine vertical line) as rotation of the intake CVVT sprocket from the TDC position.

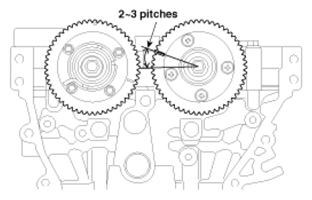

Fig 2: Turning Crankshaft Clockwise
Install the timing chain guide (A).
Tightening torque:

18.6 ~ 22.6 N.m (1.9 ~ 2.3 kgf.m, 13.7 ~ 16.6 lb-ft)

Fig 3: Identifying Timing Chain Guide
Install the timing chain tensioner arm (A).
Tightening torque:

18.6 ~ 22.6 N.m (1.9 ~ 2.3 kgf.m, 13.7 ~ 16.6 lb-ft)

Fig 4: Identifying Timing Chain Tensioner Arm
Install the timing chain.
Crankshaft sprocket (A) → Timing chain guide (B) → Intake CVVT sprocket (C) → Exhaust CVVT sprocket (D)
1. Install the timing chain with no slack between the crankshaft sprocket and the intake CVVT sprocket.

  Fig 5: Identifying Crankshaft Sprocket
