2011 Hyundai Azera GLSFACTORY OEM SERVICE PROCEDURE

Variant Coding: *Procedure

Install a EMS/TCU/ESC normally.
Connect the hi-scan (pro) to the data link connector located underneath the dash panel.

Fig 1: Connecting Hi-Scan (Pro) To Data Link Connector
Courtesy of HYUNDAI MOTOR CO.
Select vehicle name.
Select ANTI-LOCK BRAKE SYSTEM.
Select the variant coding.

Fig 2: Selecting Variant Coding
Courtesy of HYUNDAI MOTOR CO.
Follow the next procedure according to the comment.

Fig 3: Display - Variant Coding Procedure
Courtesy of HYUNDAI MOTOR CO.
Confirm the condition, and then push the "REST".

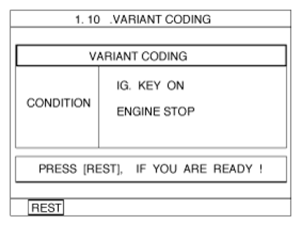

Fig 4: Display - Variant Coding Condition
Courtesy of HYUNDAI MOTOR CO.
If the procedure is finished, the below screen is displayed.

Fig 5: Display - Calibration Completion Screen
Courtesy of HYUNDAI MOTOR CO.
IGN off.
IGN on.
The variant coding is completed.
CAUTION: If the warning lamp (ESC, EBD, ABS) is lighted up, follow the "Variant coding" again.
