2011 Hyundai Azera GLSFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Inspection

Fig 1: Identifying Ignition Switch Connector Terminals Layout

Courtesy of HYUNDAI MOTOR CO.

Disconnect the ignition switch connector and key warning switch connector from under the steering column.
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

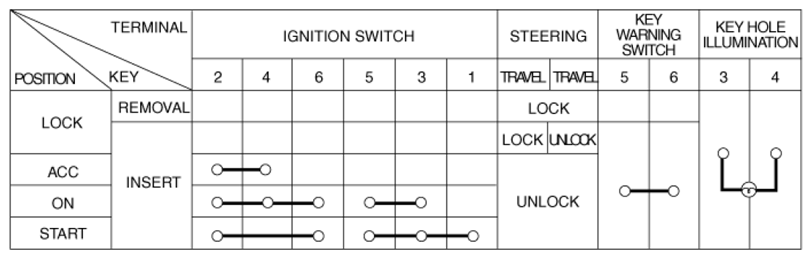

Fig 2: Terminal Continuity Chart

Courtesy of HYUNDAI MOTOR CO.
