2011 Hyundai Azera GLSFACTORY OEM SERVICE PROCEDURE

User Option Mode

The BCM offers 4 items user option mode for a user convenience (LOCK/UNLOCK ALARM, AUTO DOOR LOCK, GET IN & GET DOWN LINKAGE, ARM/DISARM BY KEY)

  • It is able to set up the enable or disable of AUTO DOOR LOCK function or AUTO DOOR LOCK operation vehicle speed when using it.
  • It is able to set up the enable or disable of enter the burglar alarm mode when using door lock by the key.
  • It is able to set up the enable or disable of horn inform function when using door lock by the key or RKE.
  1. Select option "GRANDEUR(TG)" and press ENTER.
  2. Select option "BODY CONTROL MODULE" and press ENTER.

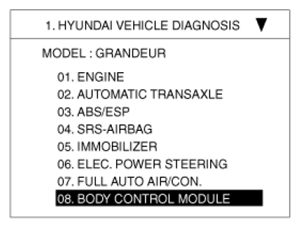

    Fig 1: Selecting Body Control Module
    G07250151Courtesy of HYUNDAI MOTOR CO.
  3. Select option "USER OPTION" and press ENTER.
    Fig 2: Selecting User Option
    G07250152Courtesy of HYUNDAI MOTOR CO.
  4. Select option "AUTO DOOR LOCK STATUS by using the direction button( / ).
  5. Select the parameter by using the direction button( / ) and press ENTER to save it.

    (Disable/5km/h/10km/h/15km/h/20km/h/25km/h/30km/h/35km/h/40km/h)

    Fig 3: Selecting Auto Door Lock Status
    G07250153Courtesy of HYUNDAI MOTOR CO.
  6. Select option "ARM/DISARM BY KEY(+RKE)" by using the direction button( / ).
  7. Select the parameter by using the direction button( / ) and press ENTER to save it.

    (Disable/Enable)

  8. Select option "LOCK/UNLOCK ALARM" by using the direction button( / ).
  9. Select the parameter by using the direction button( / ) and press ENTER to save it.

    (Disable/Enable)

  10. Select option "GET IN & GET DOWN LINKAGE" by using the direction button( / ).
  11. Select the parameter by using the direction button( / ) and press ENTER to save it.

    (Disable/Enable)
