2009 Hyundai Tucson GLS, AutomaticFACTORY OEM SERVICE PROCEDURE

ECM Terminal And Input/Output signal

ECM Harness Connector

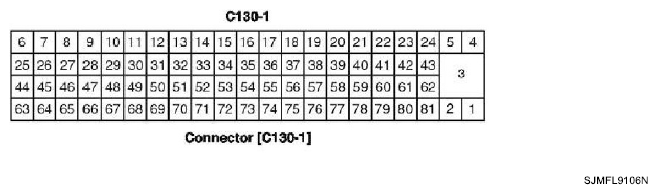

Fig 1: Identifying ECM Harness Connector Terminals
G06206219Courtesy of HYUNDAI MOTOR CO.

ECM Terminal Function

Connector [C130-1]

PIN DESCRIPTION CHART

Pin No. Description Connected to
1 Power Ground Chassis Ground
2 Power Ground Chassis Ground
3 Battery Power (B+) Battery
4 Ignition Coil (Cylinder #1, 4) control output Ignition Coil (Cylinder #1, 4)
5 Ignition Coil (Cylinder #2, 3) control output Ignition Coil (Cylinder #2, 3)
6 CAN [LOW] Other control module, Data Link Connector (DLC), Multi-Purpose Check Connector
7 CAN [HIGH] Other control module, Data Link Connector (DLC), Multi-Purpose Check Connector
8 Heated Oxygen Sensor (Sensor 1) Heater control output Heated Oxygen Sensor (Sensor 1)
9 Heated Oxygen Sensor (Sensor 2) Heater control output Heated Oxygen Sensor (Sensor 2)
10 Knock Sensor signal input Knock Sensor (KS)
11 CVVT Oil Control Valve (OCV) control output CVVT Oil Control Valve (OCV)
12 -
13 -
14 Battery voltage supply after main relay Main Relay
15 -
16 -
17 Wheel Speed Sensor [B] signal input Wheel Speed Sensor (WSS)[Without ABS/ESC]
18 Wheel Speed Sensor [A] signal input Wheel Speed Sensor (WSS)[Without ABS/ESC]
19 -
20 -
21 Battery voltage supply after main relay Main Relay
22 Battery voltage supply after ignition switch Ignition Switch
23 Injector (Cylinder #4) control output Injector (Cylinder #4)
24 Injector (Cylinder #1) control output Injector (Cylinder #1)
25 -
26 Purge Control Solenoid Valve control output Purge Control Solenoid Valve (PCSV)
27 Sensor ground Crankshaft Position Sensor (CKPS)
28 -
29 Crankshaft Position Sensor signal input Crankshaft Position Sensor (CKPS)
30 Sensor ground Camshaft Position Sensor (CMPS)
31 Engine Coolant Temperature Sensor signal input Engine Coolant Temperature Sensor (ECTS)
32 Throttle Position Sensor signal input Throttle Position Sensor (TPS)
33 Fuel Tank Pressure Sensor (FTPS) signal input Fuel Tank Pressure Sensor (FTPS)
34 Sensor ground Fuel Tank Pressure Sensor (FTPS)
35 -
36 -
37 Sensor ground Heated Oxygen Sensor (Sensor 2)
38 Sensor ground Throttle Position Sensor (TPS)
39 Vehicle speed signal input ABS/ESC Control Module [With ABS/ESC]
40 -
41 -
42 Heated Oxygen Sensor (Sensor 2) signal input Heated Oxygen Sensor (Sensor 2)
43 Heated Oxygen Sensor (Sensor 1) signal input Heated Oxygen Sensor (Sensor 1)
44 Sensor power (+5V) Manifold Absolute Pressure Sensor (MAPS), Fuel Tank Pressure Sensor (FTPS)
45 Sensor power (+5V) Throttle Position Sensor (TPS)
46 -
47 Immobilizer communication line Immobilizer Control Module
48 Sensor ground Manifold Absolute Pressure Sensor (MAPS)
49 -
50 A/C Compressor Switch signal input Triple Switch
51 A/C Pressure Switch signal input Triple Switch
52 CVVT Oil Temperature Sensor (OTS) signal input CVVT Oil Temperature Sensor (OTS)
53 -
54 Sensor ground Knock Sensor (KS)
55 Shield Ignition Coil
56 Intake Air Temperature Sensor signal input Intake Air Temperature Sensor (IATS)
57 -
58 A/C Request Switch signal input A/C Request Switch
59 Sensor ground Heated Oxygen Sensor (Sensor 1)
60 Manifold Absolute Pressure Sensor signal input Manifold Absolute Pressure Sensor (MAPS)
61 Injector (Cylinder #3) control output Injector (Cylinder #3)
62 Injector (Cylinder #2) control output Injector (Cylinder #2)
63 -
64 Cooling Fan Relay [High] control output Cooling Fan Relay [High]
65 Cooling Fan Relay [Low] control output Cooling Fan Relay [Low]
66 Engine speed signal output Cluster (Tachometer)
67 Main Relay control output Main Relay
68 A/C Compressor Relay control output A/C Compressor Relay
69 Fuel Pump Relay control output Fuel Pump Relay
70 Malfunction Indicator Lamp (MIL) control output Cluster (Malfunction Indicator Lamp)
71 Ground Immobilizer Control Module
72 Camshaft Position Sensor signal input Camshaft Position Sensor (CMPS)
73 Sensor ground Engine Coolant Temperature Sensor (ECTS)
74 -
75 Fuel consumption signal output Trip Computer
76 Sensor ground CVVT Oil Temperature Sensor (OTS)
77 k-Line Data Link Connector (DLC)
78 Idle Speed Control Actuator [CLOSE] control output Idle Speed Control Actuator (ISCA)
79 Canister Close Valve (CCV) control output Canister Close Valve (CCV)
80 Idle Speed Control Actuator [OPEN] control output Idle Speed Control Actuator (ISCA)
81 Immobilizer lamp control output Immobilizer Lamp

ECM Terminal Input/Output Signal

Connector [C130-1]

PIN DESCRIPTION CHART

Pin No. Description Condition Type Level Test Result
1 Power Ground Idle DC Max. 50 mV
2 Power Ground Idle DC Max. 50 mV
3 Battery Power (B+) Always DC Battery Voltage 13.16V
4 Ignition Coil (Cylinder #1, 4) control output Idle Pulse 1st Voltage: 300 ~ 400V 319.5V
ON Voltage : Max. 2V 1.25V
5 Ignition Coil (Cylinder #2,3) control output Idle Pulse 1st Voltage: 300 ~ 400V 328.0V
ON Voltage : Max. 2V 1.25V
6 CAN [LOW] Recessive Pulse 2.0 ~ 3.0 V 2.44V
Dominant 0.5 -2.25 V 1.48V
7 CAN [HIGH] Recessive Pulse 2.0 ~ 3.0 V 2.41V
Dominant 2.75 ~ 4.5 V 3.36V
8 Heated Oxygen Sensor (Sensor 1) Heater control output Engine run Pulse (10Hz) High : Battery Voltage 14.18V
Low : 0 ~ 0.5V 0.25V
9 Heated Oxygen Sensor (Sensor 2) Heater control output Engine run Pulse (10Hz) High : Battery Voltage 14.125V
Low : 0 ~ 0.5V 0.25V
10 Knock Sensor signal input Normal Frequency 2.0 ~ 3.0 V
Knocking Variable Frequency
11 CVVT Oil Control Valve (OCV) control output Idle Pulse High : Battery Voltage 15.44V
Low : 0 ~ 0.5V 0.188V
12 -
13 -
14 Battery voltage supply after main relay IG OFF DC Max. 1.0V 0V
IG ON Battery Voltage 12.6V
15 -
16 -
17 Wheel Speed Sensor [B] signal input Vehicle run Sensor signal
  • 50rpm : 37Hz, 236mV (Peak to peak)
  • 100rpm : 76Hz, 376mV (Peak to peak)
  • 1,000rpm : 769Hz, 1.6 4V (Peak to peak)
18 Wheel Speed Sensor [A] signal input Vehicle run Sensor signal
19 -
20 -
21 Battery voltage supply after main relay IG OFF DC Max. 1.0V 0V
IG ON Battery Voltage 12.6V
22 Battery voltage supply after ignition switch IG OFF DC Max. 0.5V 0V
IG ON Battery Voltage 14.2V
23 Injector (Cylinder #4) control output Idle Pulse High : Battery Voltage 14.13V
Low: Max. 1.0V 0.375V
  Vpeak: 53.2V
  Freq.: 5.38Hz
24 Injector (Cylinder #1) control output Idle Pulse High : Battery Voltage 14.06V
Low: Max. 1.0V 0.375
  Vpeak: 53.4V
  Freq.: 5.82Hz
25 -
26 Purge Control Solenoid Valve control output Inactive Active PWM (20Hz) High : Battery Voltage 14.06V
Low: Max. 0.5V 0.0625V
27 Sensor ground Idle DC Max. 50 mV 20.52 mV
28 -
29 Crankshaft Position Sensor signal input Engine run Pulse High : Vcc or Battery Voltage 5.04V
Low: Max. 0.5V 0.613V
30 Sensor ground Idle DC Max. 0.5V 21.122 mV
31 Engine Coolant Temperature Sensor signal input Engine run DC 0.5 ~ 4.5V 1.125V at 90 °C (194°F)
32 Throttle Position Sensor signal input C.T DC 0.2 ~ 0.9V 0.288V
W.O.T 4.0 ~ 5.0V 4.23V
33 Fuel Tank Pressure Sensor (FTPS) signal input Idle Analog 0 ~ Vcc 2.46V
34 Sensor ground Idle DC Max. 0.5V 19.48 mV
35 -
36 -
37 Sensor ground Idle DC Max. 0.5 mV 20.2 mV
38 Sensor ground Idle DC Max. 0.5 mV 20.1 mV
39 Vehicle speed signal input Vehicle run Pulse High : Min. 5.0V 4.66V
Low: Max. 1.0V 0.975V
40 -
41 -
42 Heated Oxygen Sensor (Sensor 2) signal input Engine run Analog RICH: 0.6 ~ 1.0V 0.755V
LEAN : 0 ~ 0.4V 0.136V
43 Heated Oxygen Sensor (Sensor 1) signal input Engine run Analog RICH: 0.6 ~ 1.0V 0.724V
LEAN : 0 ~ 0.4V 0.105V
44 Sensor power (+5V) IG OFF DC Max. 0.5V 0V
IG ON 4.9 ~ 5.1V 5.05V
45 Sensor power (+5V) IG OFF DC Max. 0.5V 0V
IG ON 4.9 ~ 5.1V 5.05V
46 -
47 Immobilizer communication line
48 Sensor ground Idle DC Max. 0.5 mV 24.4 mV
49 -
50 A/C Compressor Switch signal input S/W OFF DC Max. 0.5V 12.56V
S/W ON Battery Voltage 0V
51 A/C Pressure Switch signal input S/W OFF DC Max. 0.5V 12.56V
S/W ON Battery Voltage 0V
52 CVVT Oil Temperature Sensor (OTS) signal input Idle Analog 0.5 ~ 4.5V 0.937V at 94 °C (201 °F)
53 -
54 Sensor ground Idle DC Max. 0.5 mV 21.55 mV
55 Shield Idle DC Max. 0.5 mV 21.36 mV
56 Intake Air Temperature Sensor signal input Engine run Analog 0 ~ 5.0V 1.86V at 42°C (107°F)
57 -
58 A/C Request Switch signal input S/W OFF DC Max. 1.0V 0V
S/W ON Battery Voltage 12.5V
59 Sensor ground Idle DC Max. 0.5 mV 22.15 mV
60 Manifold Absolute Pressure Sensor signal input Idle Analog 0 ~ 2.0V 1.07V
3000 rpm 1.0 ~ 4.5V 1.98V
61 Injector (Cylinder #3) control output Idle Pulse High : Battery Voltage 13.8V
Low: Max. 1.0V 0.375V
  Vpeak: 53.3V
  Freq.: 5.83Hz
62 Injector (Cylinder #2) control output Idle Pulse High : Battery Voltage 13.75V
Low: Max. 1.0V 0.313V
  Vpeak: 53.2V
  Freq.: 5.82Hz
63 -
64 Cooling Fan Relay [High] control output Relay OFF DC Battery Voltage 13.81V
Relay ON Max. 1.0V 0.188V
65 Cooling Fan Relay [Low] control output Relay OFF DC Battery Voltage 14.19V
Relay ON Max. 1.0V 0.188V
66 Engine speed signal output Idle Pulse High : Battery Voltage 12.56V
Low: Max. 0.5V 0V
Idle = 20 ~ 26Hz 23.36HZ
67 Main Relay control output Relay OFF DC Battery Voltage 13.0V
Relay ON Max. 1.0V 0.75V
68 A/C Compressor Relay control output Relay OFF DC Battery Voltage 14.0V
Relay ON Max. 1.0V 0.125V
69 Fuel Pump Relay control output Engine Stop DC Battery Voltage 13.0V
After IG ON Max. 1.0V 0.125V
70 Malfunction Indicator Lamp (MIL) control output Lamp OFF DC Battery Voltage 13.0V
Lamp ON Max. 1.0V 0.063V
71 Ground Always Static Signal 0 ~ 0.5V 0.4V
72 Camshaft Position Sensor signal input Engine run Pulse (5.86Hz) High : Vcc or Battery Voltage 5.05V
Low: Max. 0.5V 0.213V
73 Sensor ground Idle DC Max. 0.5 mV 20.86 mV
74 -
75 Fuel consumption signal output Idle Pulse (3.33Hz) High : Battery Voltage or Vcc 13.19V
Low: Max. 0.5V 0.188V
76 Sensor ground Idle DC Max. 0.5 mV 22.2 mV
77 K-Line When communicating Pulse High : Min. Vbatt * 70% 13.0V
Low: Max. Vbatt * 30% 0V
78 Idle Speed Control Actuator [CLOSE] control output Idle Pulse High : Battery Voltage 14.81V
Low: Max. 1.0V 0.25V
79 Canister Close Valve (CCV) control output Idle DC Battery Voltage 14.13V
Leak Test 0 ~ 1V 0.188V
80 Idle Speed Control Actuator [OPEN] control output Idle Pulse High : Battery Voltage 14.63V
Low: Max. 1.0V 0.187V
81 Immobilizer lamp control output
