2009 Hyundai Entourage GLSFACTORY OEM SERVICE PROCEDURE
Head Lamps Low Beam Function
- Necessary conditions to switch ON :
- By putting the Head lamp switch in position 'Head lamp Low Beam' or Auto light activation or DRL activation.
- Necessary conditions to switch OFF :
- If they are released by the Head lamp switch (Auto light function deactivated) and if the DRL function is deactivated
- If the Auto light function is active but the Auto light sensor signal status is not 'HL ON'.

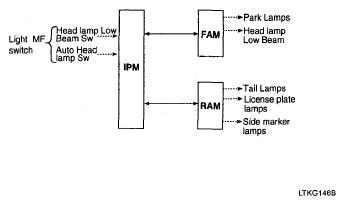

- Functional diagram
