2009 Hyundai Azera V6-3.8LFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor: Service and Repair
Removal
1. Preparation
(1) Remove the Service Cover (A) in the trunk.

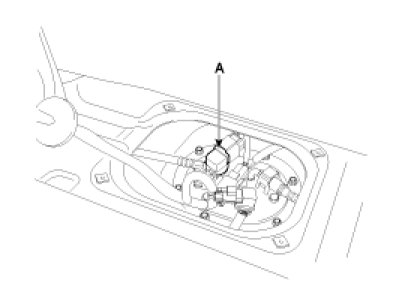

(2) Disconnect the Fuel Pump Connector (A).
(3) Start the engine and wait until fuel in fuel line is exhausted.
(4) After the engine stalls, turn the ignition switch OFF.

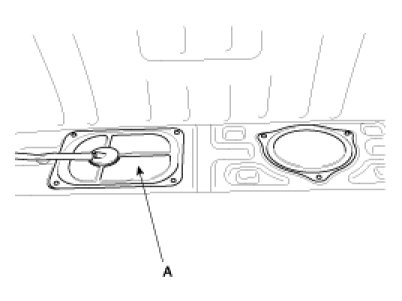

2. Remove the Service Cover (A) in the tank.

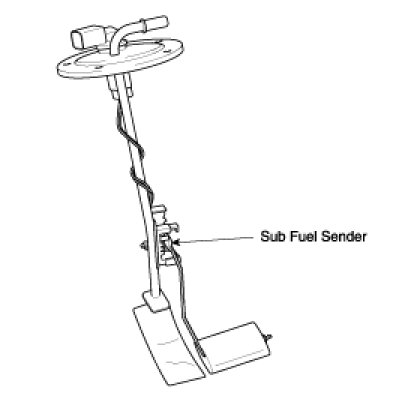

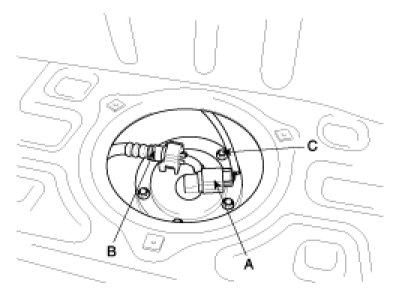

3. Disconnect Sub Fuel Sender Connector (A) and Suction Tube Quick-Connector (B).
4. Unfasten the Sub Fuel Sender mounting bolts (C) and remove the Sub Fuel Sender.
Installation
1. Install the Sub Fuel Sender according to the reverse order of "REMOVAL" procedure.
Tightening Torque
2.0 - 2.9 Nm (0.2 - 0.3 kgf-m, 1.4 - 2.2 lbf-ft)
