2008 Hyundai Entourage V6-3.8L
Power Tail Gate Module
2008 Hyundai Entourage V6-3.8LSECTION Power Tail Gate Module
Power Tail Gate Module (1):

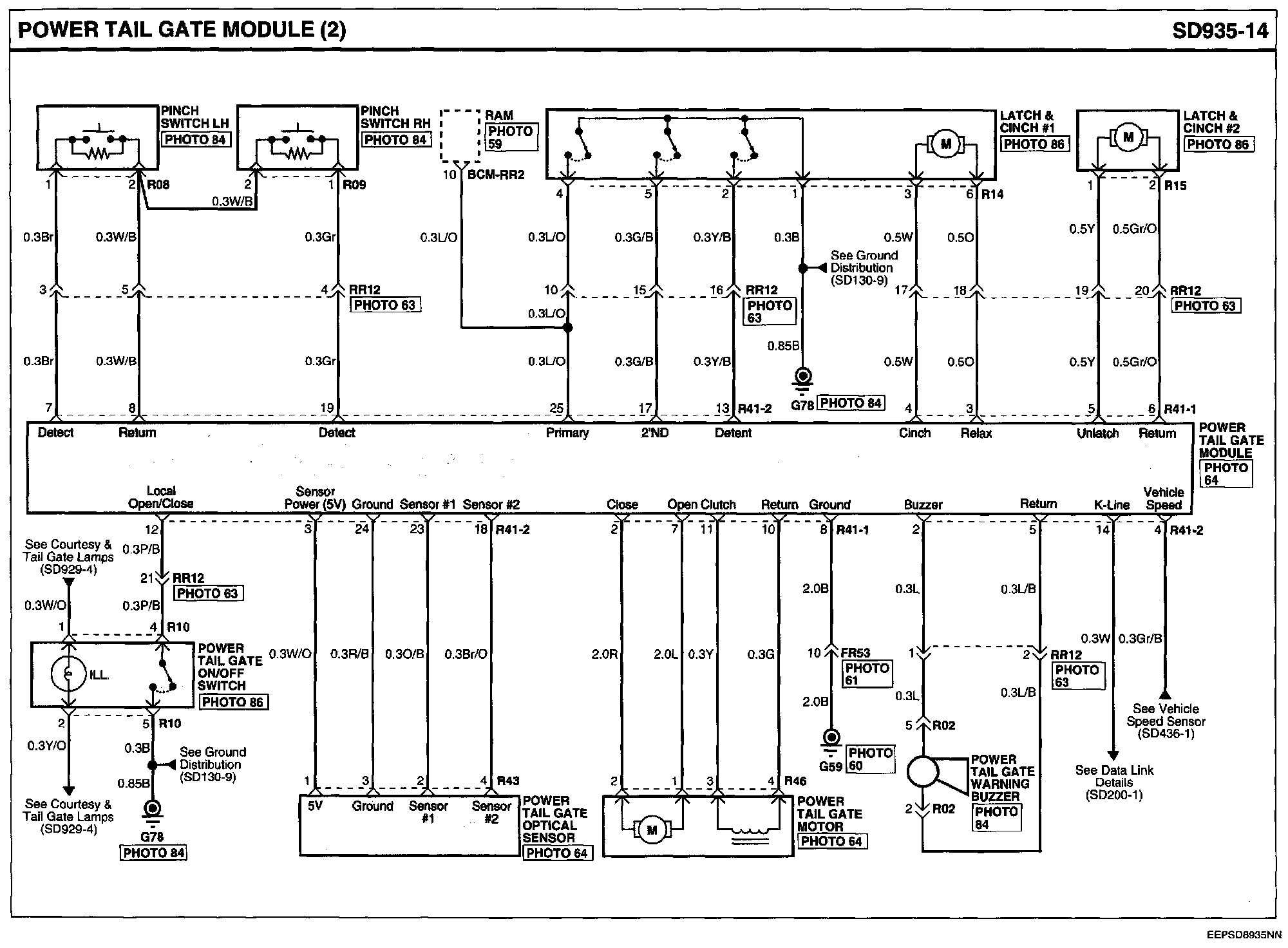

Power Tail Gate Module (2):

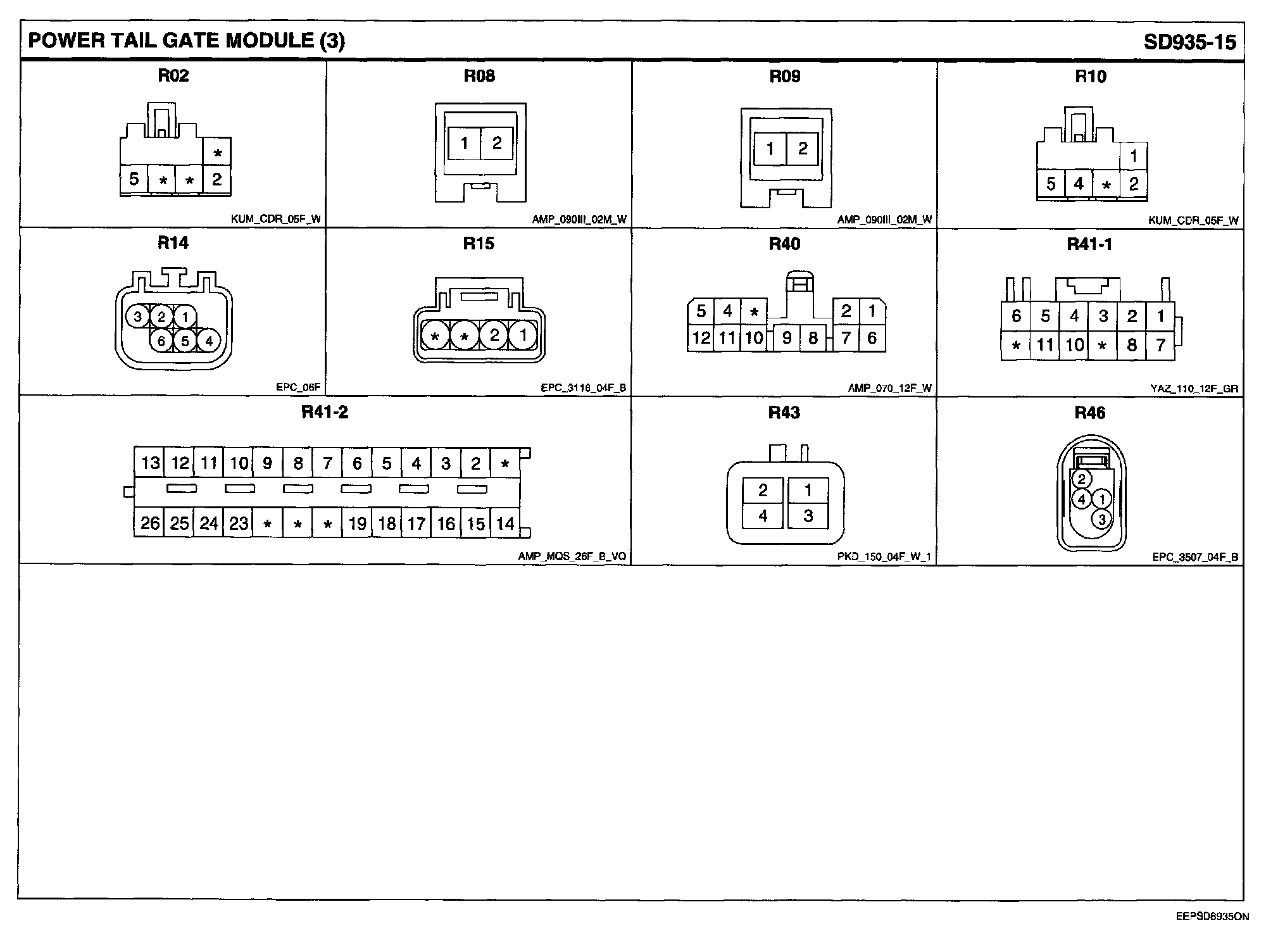

Power Tail Gate Module Connector Pin Outs:
Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that follow most sets of system diagrams.
