2008 Hyundai Entourage V6-3.8L
Seat Temperature Control Module: Service and Repair
2008 Hyundai Entourage V6-3.8LSECTION Service and Repair
SEAT WARMER MODULE
REPLACEMENT
1. Disconnect the negative (-) battery terminal.

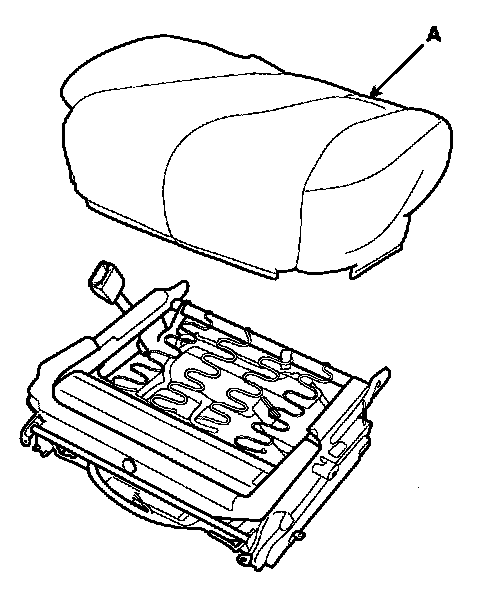

2. Remove the seat cushion (A).
3. Remove the seat heater module (B) after removing seat heater module mounting screw (2EA) and connector from rear height motor (A).
4. Installation is the reverse of removal.
REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the seat cushion (A).
3. Remove the seat heater module (B) after removing seat heater module mounting screw (2EA) and connector from rear height motor (A).
4. Installation is the reverse of removal.
