2007 Hyundai Tiburon SEFACTORY OEM SERVICE PROCEDURE

Connector Inspection Procedure

Handling of Connector

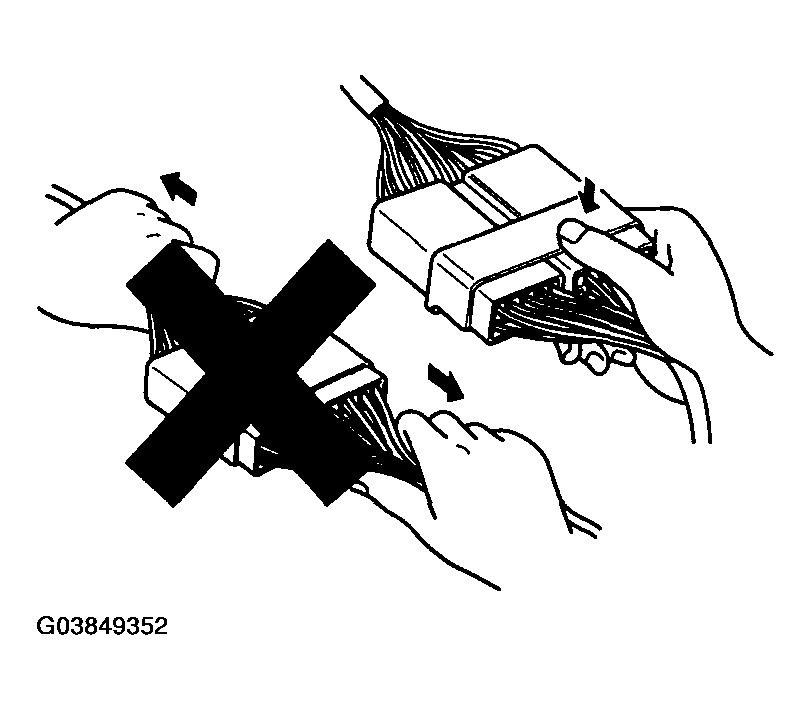

1. Never pull on the wiring harness when disconnecting connectors.

  Fig 1: Precaution For Disconnecting Connectors
  Courtesy of HYUNDAI MOTOR CO.

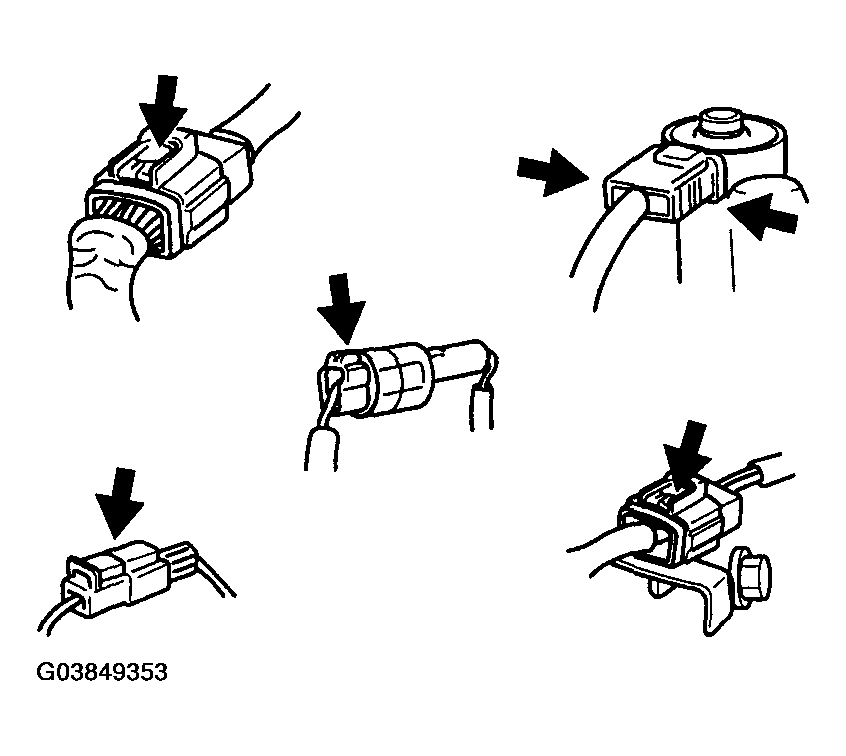

2. When removing the connector with a lock, press or pull locking lever.

  Fig 2: Removing Connector With Lock
  Courtesy of HYUNDAI MOTOR CO.

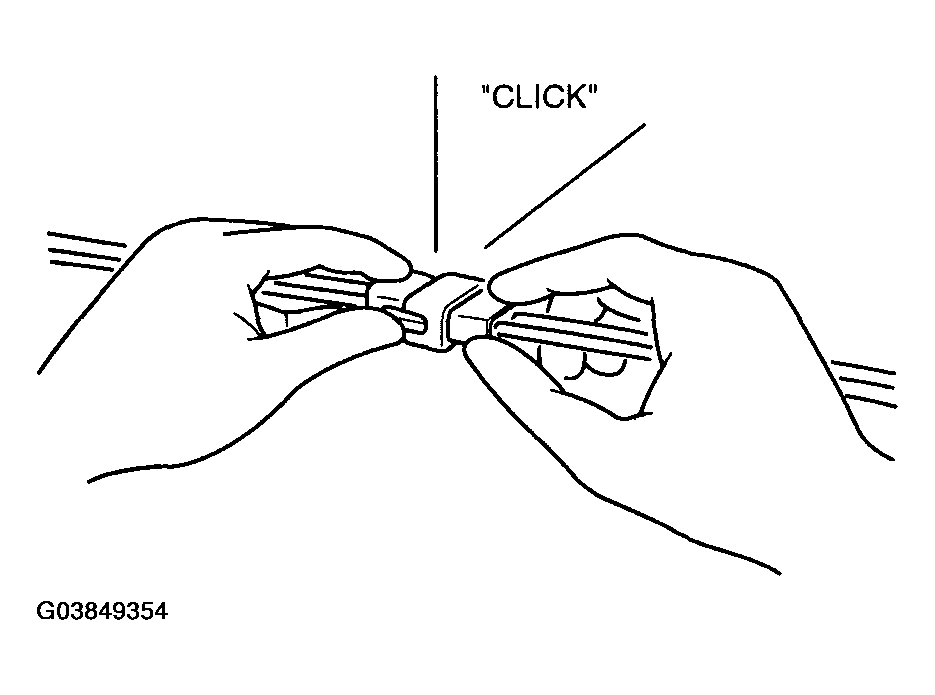

3. Listen for a click when locking connectors. This sound indicates that they are securely locked.

  Fig 3: Locking Connectors With Click Sound
  Courtesy of HYUNDAI MOTOR CO.

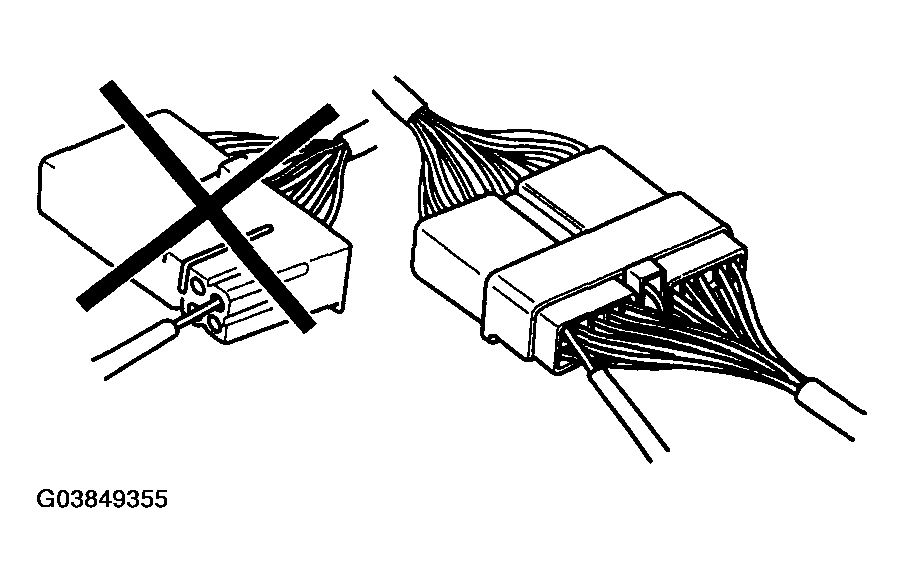

4. When a tester is used to check for continuity, or to measure voltage, always insert tester probe from wire harness side.

  Fig 4: Precaution For Inserting Tester Probe From Wire Harness Side
  Courtesy of HYUNDAI MOTOR CO.

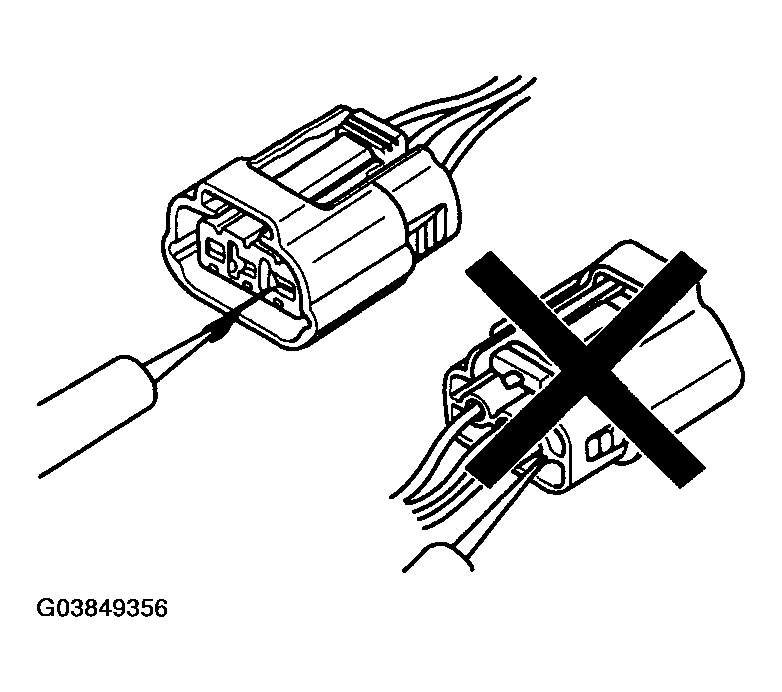

5. Check waterproof connector terminals from the connector side. Waterproof connectors cannot be accessed from harness side.
Fig 5: Precaution For Inserting Tester Lead
Courtesy of HYUNDAI MOTOR CO.
