2007 Hyundai Entourage GLSFACTORY OEM SERVICE PROCEDURE

Connector Inspection Procedure

Handling of Connector
1. Never pull on the wiring harness when disconnecting connectors.

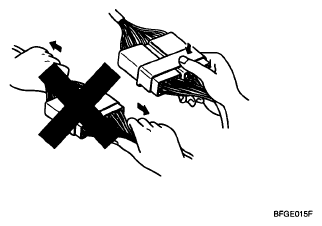

  Fig 1: Connector Inspection Procedure When Handling Of Connector
  Courtesy of HYUNDAI MOTOR CO.
2. When removing the connector with a lock, press or pull locking lever.

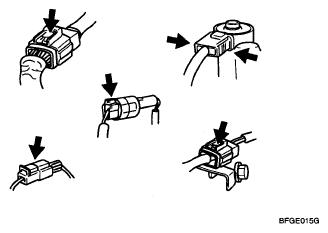

  Fig 2: Connector Inspection Procedure When Removing Connector With Lock
  Courtesy of HYUNDAI MOTOR CO.
3. Listen for a click when locking connectors. This sound indicates that they are securely locked.

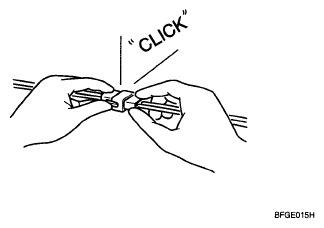

  Fig 3: Connector Inspection Procedure When Locking Connectors
  Courtesy of HYUNDAI MOTOR CO.
4. When a tester is used to check for continuity, or to measure voltage, always insert tester probe from wire harness side.

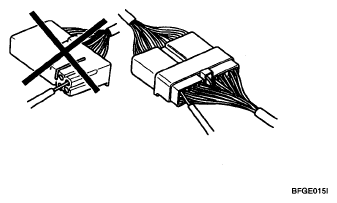

  Fig 4: Connector Inspection Procedure When Checking Continuity And Voltage
  Courtesy of HYUNDAI MOTOR CO.
5. Check waterproof connector terminals from the connector side. Waterproof connectors cannot be accessed from harness side.

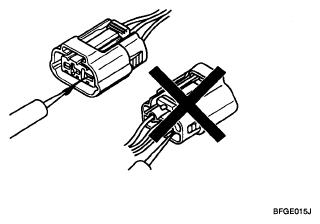

Fig 5: Connector Inspection Procedure When Checking Waterproof Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
