2007 Hyundai Entourage GLSFACTORY OEM SERVICE PROCEDURE

Front Wheel Speed Sensor: Removal: Notes

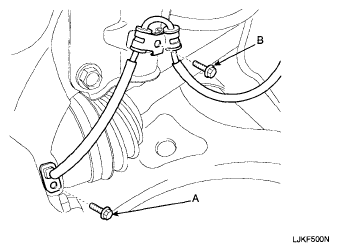

Remove the front wheel speed sensor mounting bolt (A) and the wire bracket mounting bolt (B).

Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.

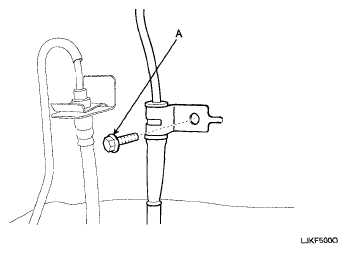

Remove the wire bracket bolt (A).

Fig 2: Identifying Wire Bracket Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the front wheel guard.

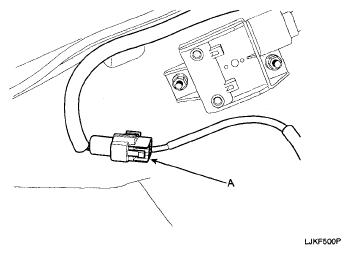

Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).

Fig 3: Identifying Wheel Speed Sensor Connector

Courtesy of HYUNDAI MOTOR CO.
