2007 Hyundai Entourage GLSFACTORY OEM SERVICE PROCEDURE

Ignition Switch: Replacement

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.

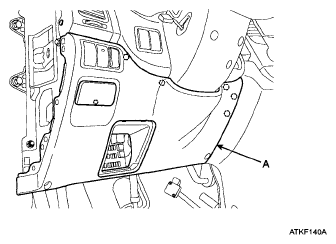

Fig 1: Identifying Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the screws (2EA) and trip switch connector. Then remove the crash fascia panel (B).

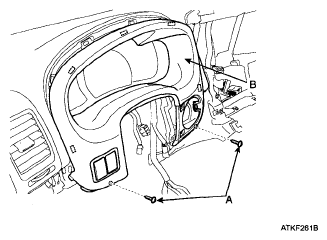

Fig 2: Identifying Screws And Crash Fascia Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the ignition switch (A) after loosening the screw with IG ON and disconnecting the 6P connector.

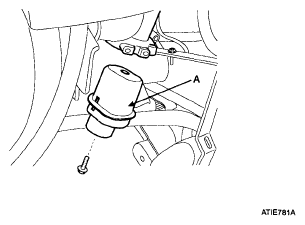

Fig 3: Identifying Ignition Switch
Courtesy of HYUNDAI MOTOR CO.
Remove the door warning switch and key illumination lamp (A) after loosening the screw and disconnecting the 6P connector.

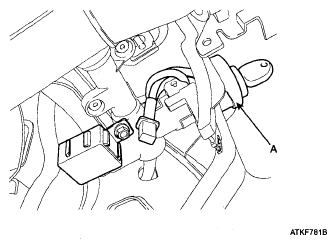

Fig 4: Identifying Key Illumination Lamp And Screw
Courtesy of HYUNDAI MOTOR CO.
Remove the key lock cylinder (C) after pushing lock pin (B) with key ACC.

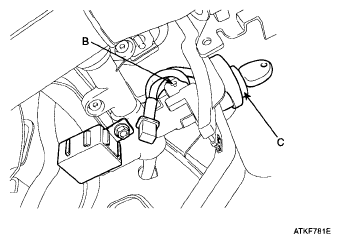

Fig 5: Identifying Key Lock Cylinder And Pushing Lock Pin
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal procedure.
