2007 Hyundai Entourage GLSFACTORY OEM SERVICE PROCEDURE

Abs Control

  1. NORMAL BRAKING without ABS
    DESCRIPTION CHART

    Β  Inlet valve (EV) Outlet valve (AV) Pump motor
    Operation Open Close OFF

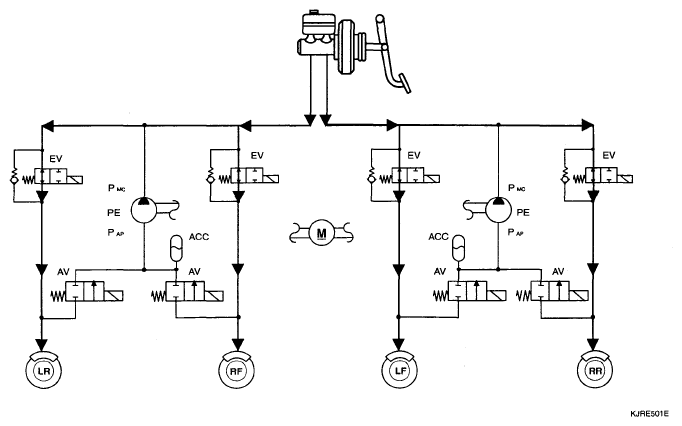

    Fig 1: Normal Braking (Without ABS) - Circuit Diagram
    G05323136Courtesy of HYUNDAI MOTOR CO.
