2007 Hyundai Entourage GLSFACTORY OEM SERVICE PROCEDURE
Head Lamps High Beam Function
- Necessary conditions to switch ON :
- By pushing down the High Beam lever switch if
- the Head lamp switch is in position 'Head lamp Low Beam' or the Head lamps Low Beam have been turned ON by the Auto light function.
- By pulling the High Beam lever switch toward the driver (Flash to pass activation)
- By the DRL function activation for Canada.
- By pushing down the High Beam lever switch if
- Necessary conditions to switch OFF :
- By pulling back the High Beam lever switch (manual reset by the driver) or
- If the Head lamps Low Beam are turned OFF or if the Auto light function is active but the Auto light Sensor signal status is not 'HL ON') or
- By releasing the Flash To Pass activation and
- If the DRL function is deactivated for Canada.

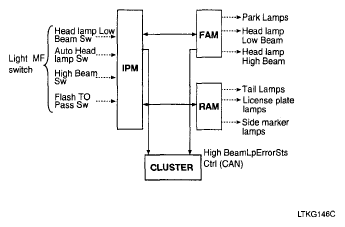

- Functional diagram
