2007 Hyundai Azera GLSFACTORY OEM SERVICE PROCEDURE

Charging System: Alternator: Disassembly

Remove the alternator cover (A) using a screw driver (B).

Fig 1: Identifying Alternator Cover And Screw Driver
Courtesy of HYUNDAI MOTOR CO.
Remove the slip ring guide (A).
Loosen the mounting bolts (B) and disconnect the brush holder assembly (C).

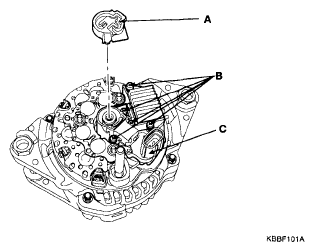

Fig 2: Identifying Slip Ring Guide, Mounting Bolts And Brush Holder Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the rectifier (A) with 4 screw.

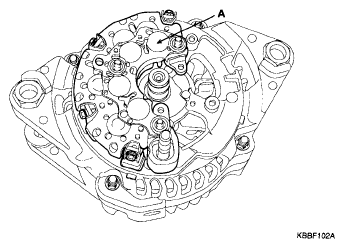

Fig 3: Identifying Alternator Rectifier
Courtesy of HYUNDAI MOTOR CO.
Remove the nut, pulley (A) and spacer.

Fig 4: Locating Pulley
Courtesy of HYUNDAI MOTOR CO.
Loosen the 4 nuts (A).

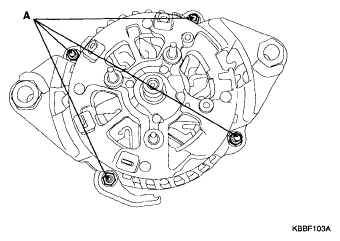

Fig 5: Identifying Alternator Nuts
Courtesy of HYUNDAI MOTOR CO.
Disconnect the rotor (A) and cover (B).

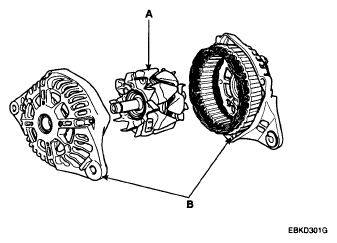

Fig 6: Locating Rotor And Cover
Courtesy of HYUNDAI MOTOR CO.
Reassembly is the reverse order of disassembly.
