2007 Hyundai Azera GLSFACTORY OEM SERVICE PROCEDURE

Abs Control

NORMAL BRAKING without ABS

ABS SPECIFICATION

	Inlet valve(EV)	Outlet valve(AV)	Pump motor
Operation	Open	Close	OFF

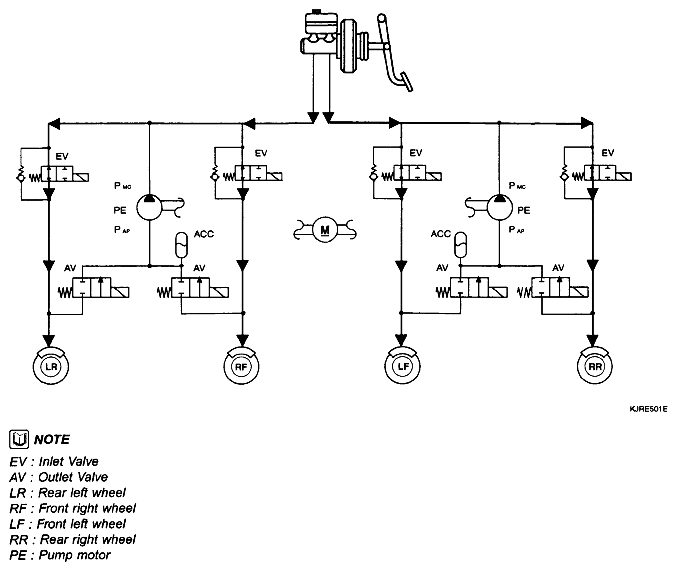

Fig 1: ABS Control - Circuit Diagram

Courtesy of HYUNDAI MOTOR CO.

DECREASE MODE

DECREASE MODE CHART

	Inlet valve(EV)	Outlet valve(AV)	Pump motor
Operation	Close	Open	ON (Motor speed control)

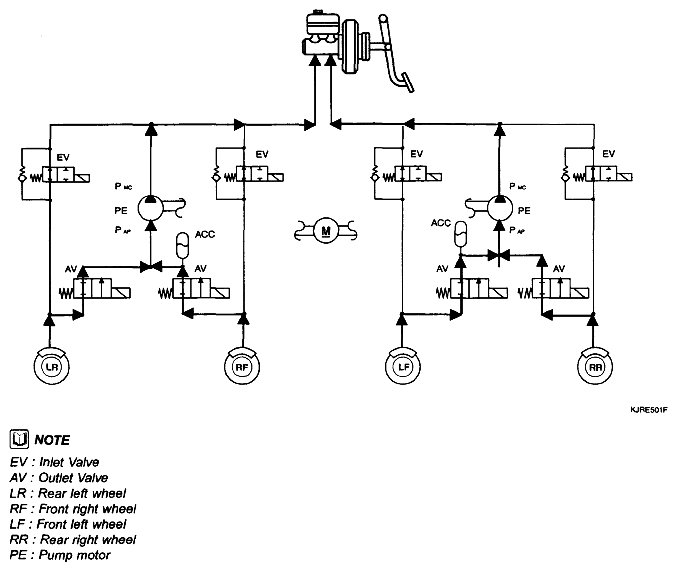

Fig 2: ABS Control - Circuit Diagram (Decrease Mode)

Courtesy of HYUNDAI MOTOR CO.

HOLD MODE

HOLD MODE CHART

	Inlet valve(EV)	Outlet valve(AV)	Pump motor
Operation	Close	Close	OFF

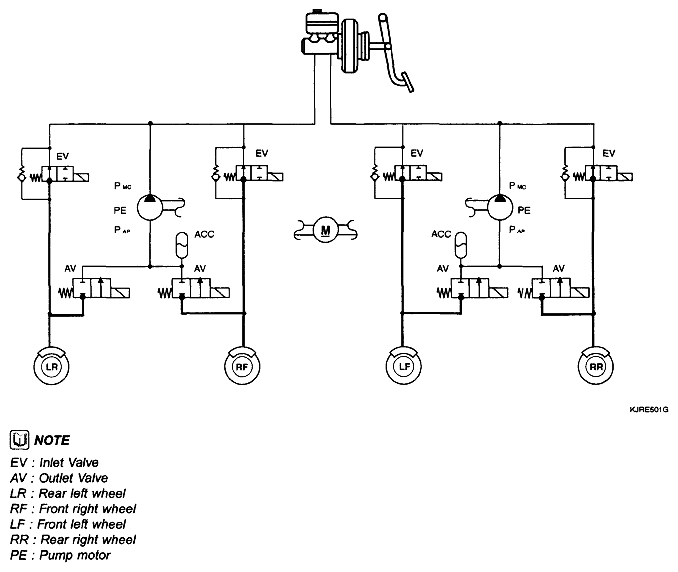

Fig 3: ABS Control - Circuit Diagram (Hold Mode)

Courtesy of HYUNDAI MOTOR CO.

INCREASE MODE

INCREASE MODE CHART

	Inlet valve(EV)	Outlet valve(AV)	Pump motor
Operation	Open	Close	OFF

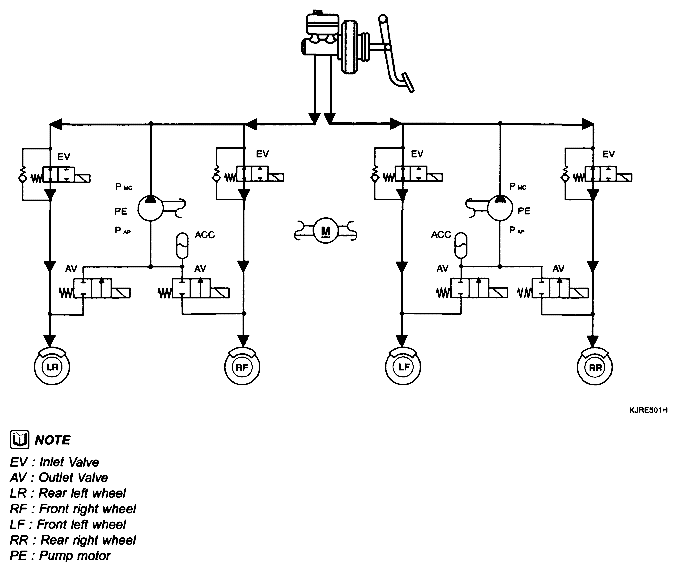

Fig 4: ABS Control - Circuit Diagram (Increase Mode)

Courtesy of HYUNDAI MOTOR CO.
