2006 Hyundai Azera V6-3.8LFACTORY OEM SERVICE PROCEDURE
Spark Plug: Testing and Inspection
INSPECT SPARK PLUG
1. Remove the ignition coil connector(A).

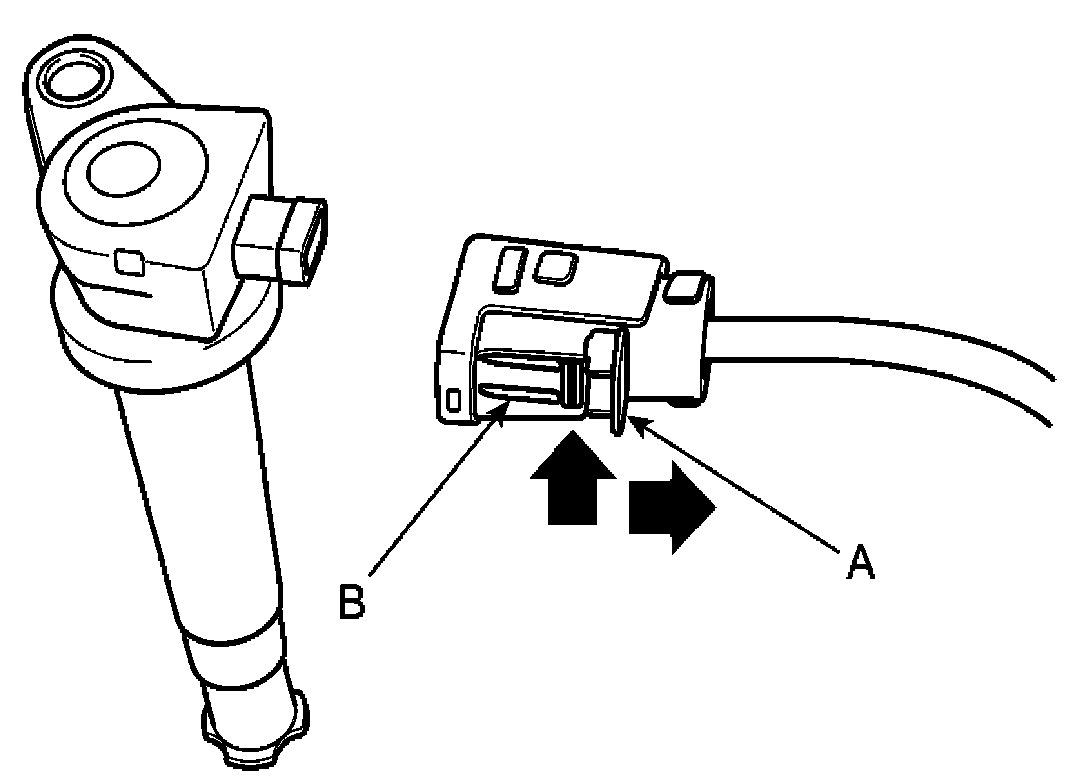

NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
2. Remove the ignition coil (B).
3. Using a spark plug socket, remove the spark plug.
CAUTION: Be careful that no contaminates enter through the spark plug holes.
4. Inspect the electrodes (A) and ceramic insulator (B).
5. Check the electrode gap (A).
Standard :Unleaded : 1.0 - 1.1 mm (0.0394 - 0.0433 in.)
1. Remove the ignition coil connector(A).
NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
2. Remove the ignition coil (B).
3. Using a spark plug socket, remove the spark plug.
CAUTION: Be careful that no contaminates enter through the spark plug holes.

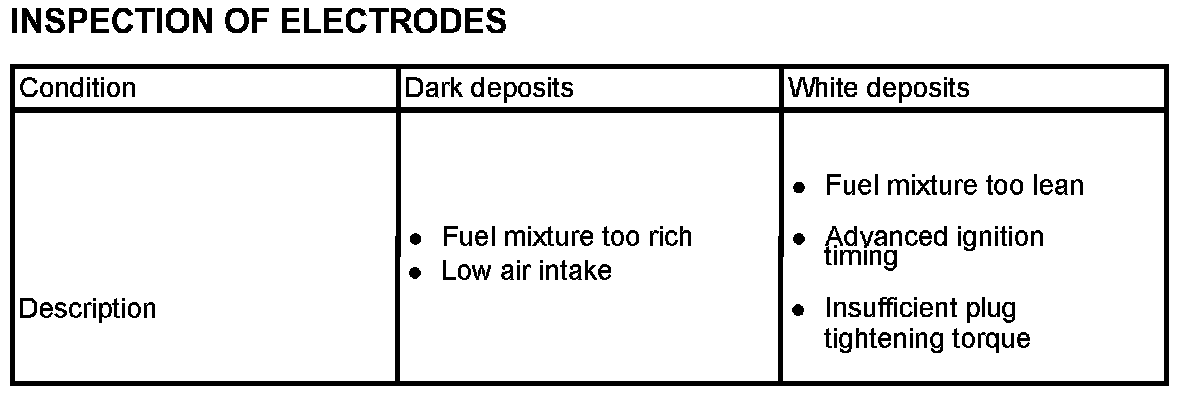

Inspection Of Electrodes:

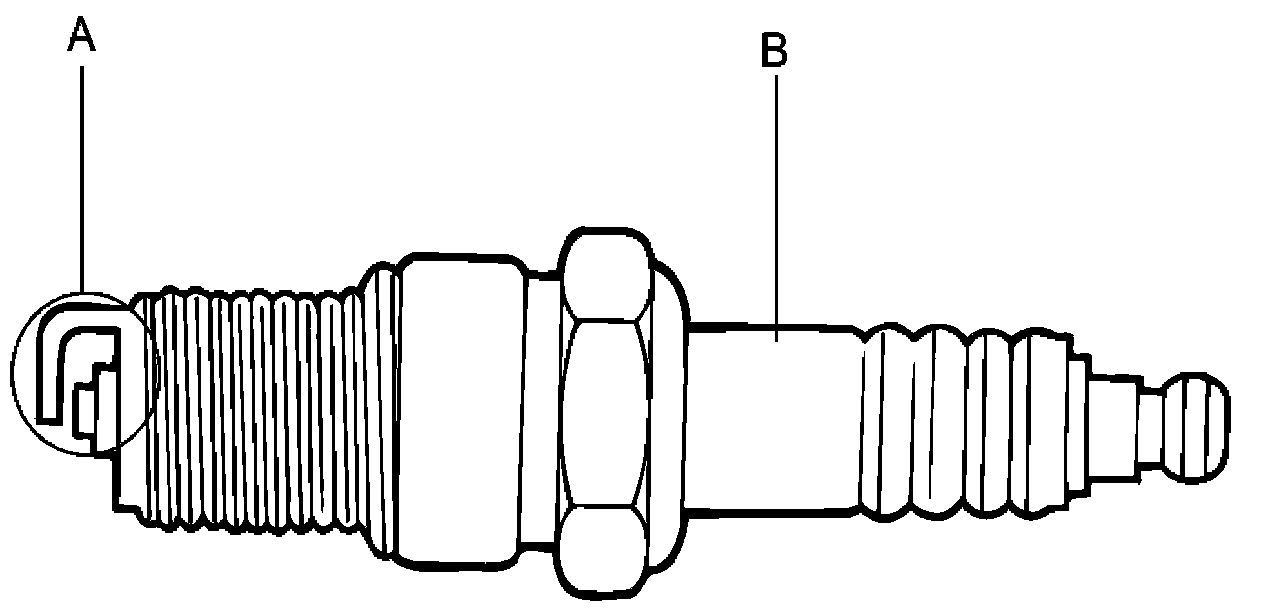

4. Inspect the electrodes (A) and ceramic insulator (B).
5. Check the electrode gap (A).
Standard :Unleaded : 1.0 - 1.1 mm (0.0394 - 0.0433 in.)
