2006 Hyundai Azera V6-3.8LFACTORY OEM SERVICE PROCEDURE
Engine Controls - MIL ON/DTC P0441 Set: Overview
Group FUEL SYSTEM
Number 09-FL-008
Date AUGUST, 2009
Model
SONATA 3.3L
SANTA FE 3.3L
AZERA 3.8L
Subject
ECM UPDATE - MIL ON WITH DTC P0441
DESCRIPTION:
Some 2006-2007 Sonata (NF) 3.3L / Azera (TG) 3.8L, and 2007 Santa Fe (CM) 3.3L vehicles may experience malfunction indicator lamp illumination for DTC P0441 (Evaporative Emission System - Incorrect Purge Flow).
NOTE:
There are no vehicle performance issues associated with this condition.
APPLICABLE VEHICLES:
^ 2006-2007 Sonata (NF) 3.3L
^ 2006-2007 Azera (TG) 3.8L
^ 2007 Santa Fe (CM) 3.3L
NOTE:
To verify the vehicle is affected, be sure to check the version of the vehicle's engine control unit ROM ID with reference to the ROM ID Information Table mentioned below before attempting to update the control unit software.
ROM ID INFORMATION TABLES
NOTE:
Perform the ECM update when DTC P0441 occurs. If the condition exists after the ECM update, perform EVAP system diagnostics related to DTC P0441 prior to replacing the Purge Control Solenoid Valve (PCSV).

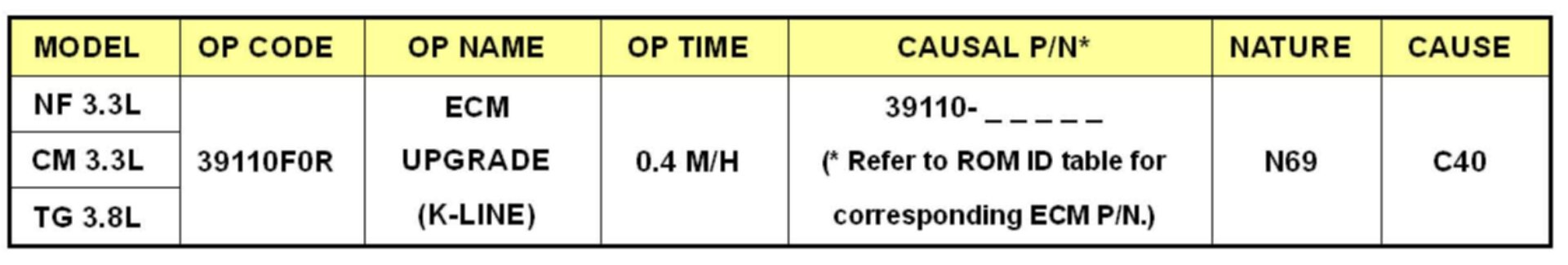

WARRANTY INFORMATION
Number 09-FL-008
Date AUGUST, 2009
Model
SONATA 3.3L
SANTA FE 3.3L
AZERA 3.8L
Subject
ECM UPDATE - MIL ON WITH DTC P0441
DESCRIPTION:
Some 2006-2007 Sonata (NF) 3.3L / Azera (TG) 3.8L, and 2007 Santa Fe (CM) 3.3L vehicles may experience malfunction indicator lamp illumination for DTC P0441 (Evaporative Emission System - Incorrect Purge Flow).
NOTE:
There are no vehicle performance issues associated with this condition.
APPLICABLE VEHICLES:
^ 2006-2007 Sonata (NF) 3.3L
^ 2006-2007 Azera (TG) 3.8L
^ 2007 Santa Fe (CM) 3.3L
NOTE:
To verify the vehicle is affected, be sure to check the version of the vehicle's engine control unit ROM ID with reference to the ROM ID Information Table mentioned below before attempting to update the control unit software.
ROM ID INFORMATION TABLES
NOTE:
Perform the ECM update when DTC P0441 occurs. If the condition exists after the ECM update, perform EVAP system diagnostics related to DTC P0441 prior to replacing the Purge Control Solenoid Valve (PCSV).
WARRANTY INFORMATION
