2004 Hyundai XG350 BaseFACTORY OEM SERVICE PROCEDURE

Procedure To Install The Lock Cam: Notes

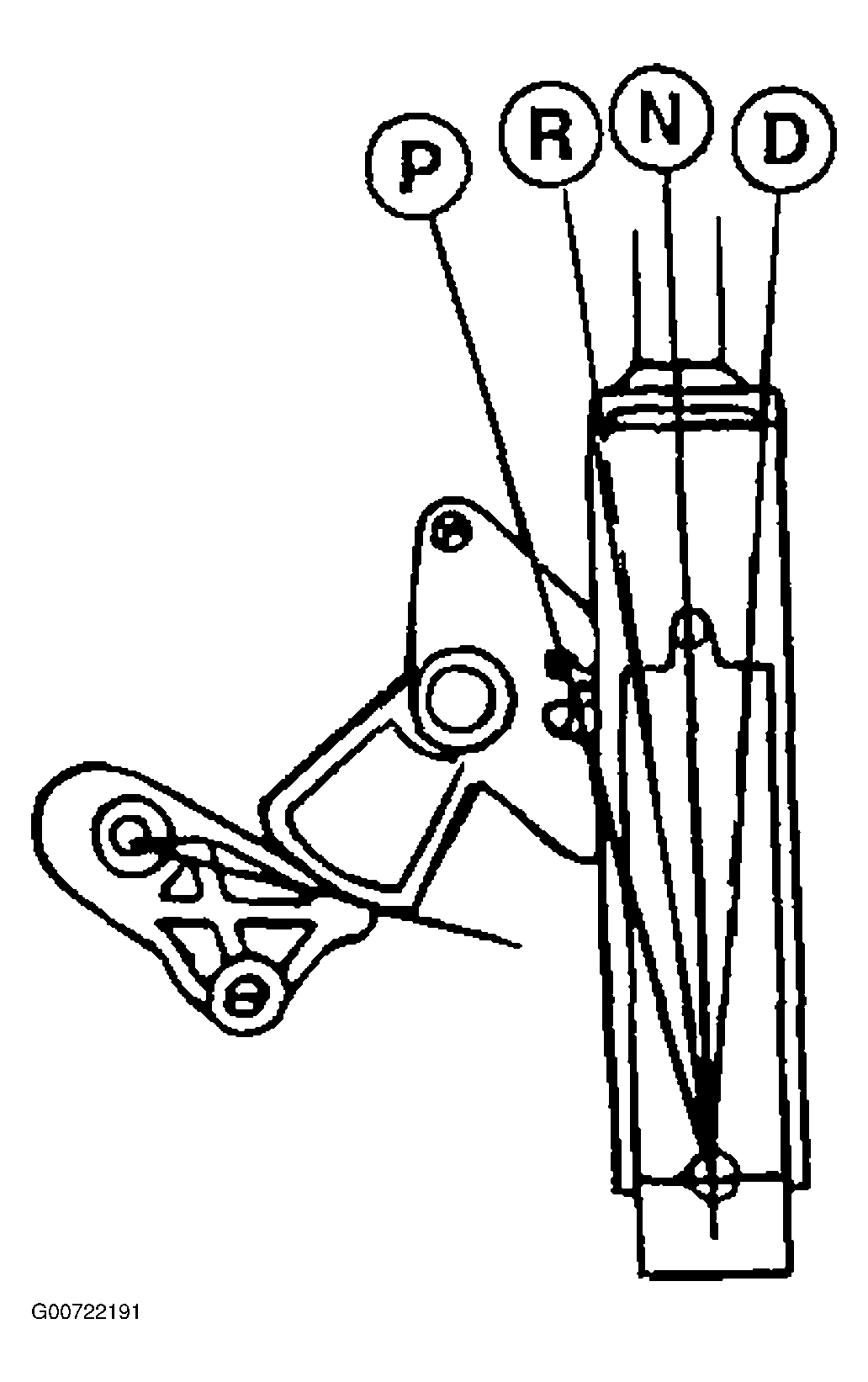

Fig 1: Identifying Lock Cam Positions

Courtesy of HYUNDAI MOTOR CO.

Move A/T lever to "P" position to set the key lock cam and the shift lock cam as shown in the figure.
- Check that the key lock cam is located at "B" by the detent pin.
- Check that the shift lock cam is located at "A".

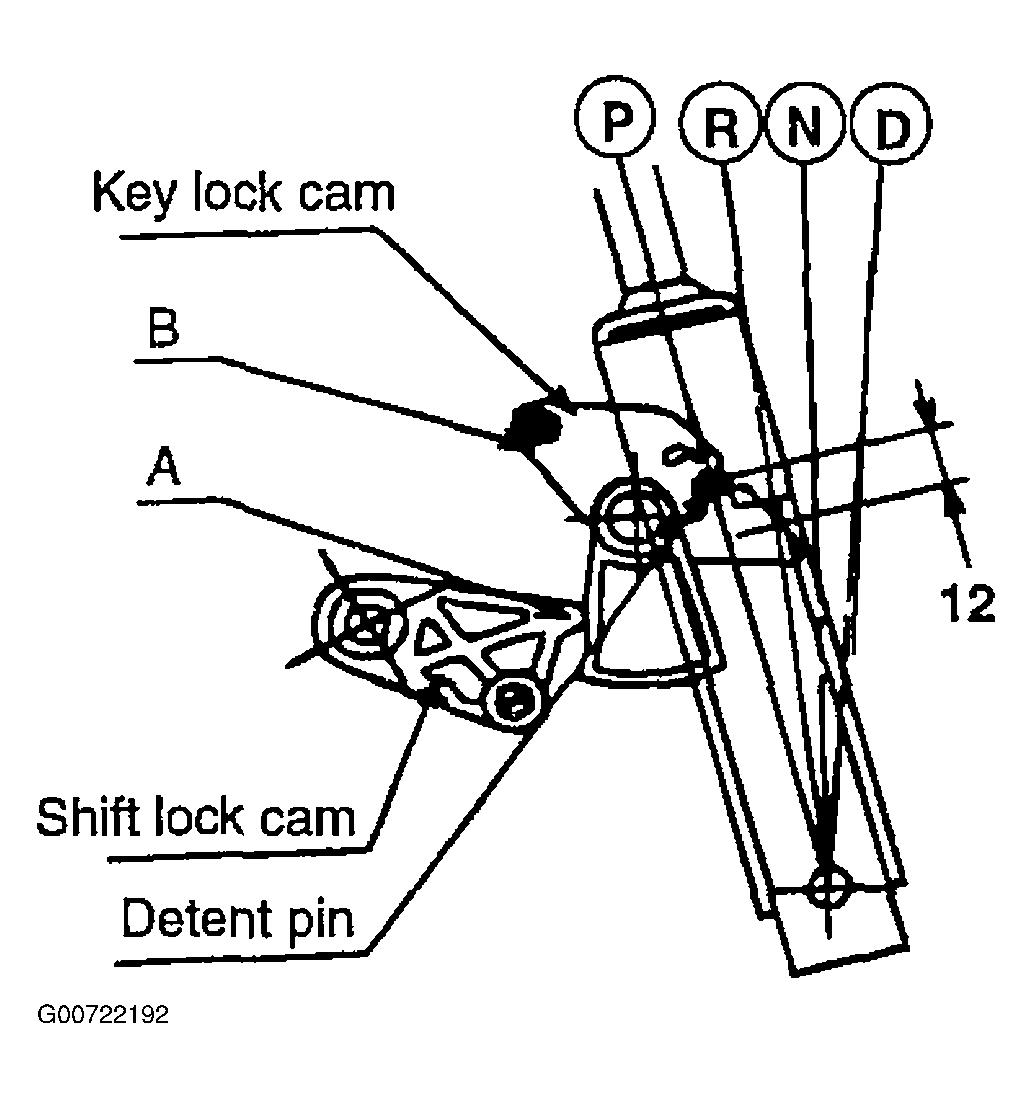

  Fig 2: Identifying Lock Cam Positions "A" & "B"
  Courtesy of HYUNDAI MOTOR CO.
Check that the key cylinder is at "LOCK".
