2004 Hyundai XG350 BaseFACTORY OEM SERVICE PROCEDURE
Throttle Body Cleaning
NOTE:
Disconnect the intake air hose from the throttle body, and check the throttle valve surface for dirt. Spray cleaning solvent on the face of the valve to remove dirt.
- Warm up the engine, then stop it.
- Remove the intake air hose from the throttle body.
- Plug the bypass passage inlet of the throttle body.NOTE: Make sure the solvent does not enter the by-pass passage.
- Spray cleaning solvent into the valve through the throttle body intake port and let it soak for about 5 minutes. After 5 minutes open the valve and wipe it clean with a soft rag.CAUTION: Keep the throttle valve closed while spraying to avoid charging the intake path with solvent.
- Start the engine, race it several times and allow the engine to run near idle for 1 minute.
- Repeat Steps 4 and 5.
- Unplug the bypass passage inlet.
- Attach the intake air hose.

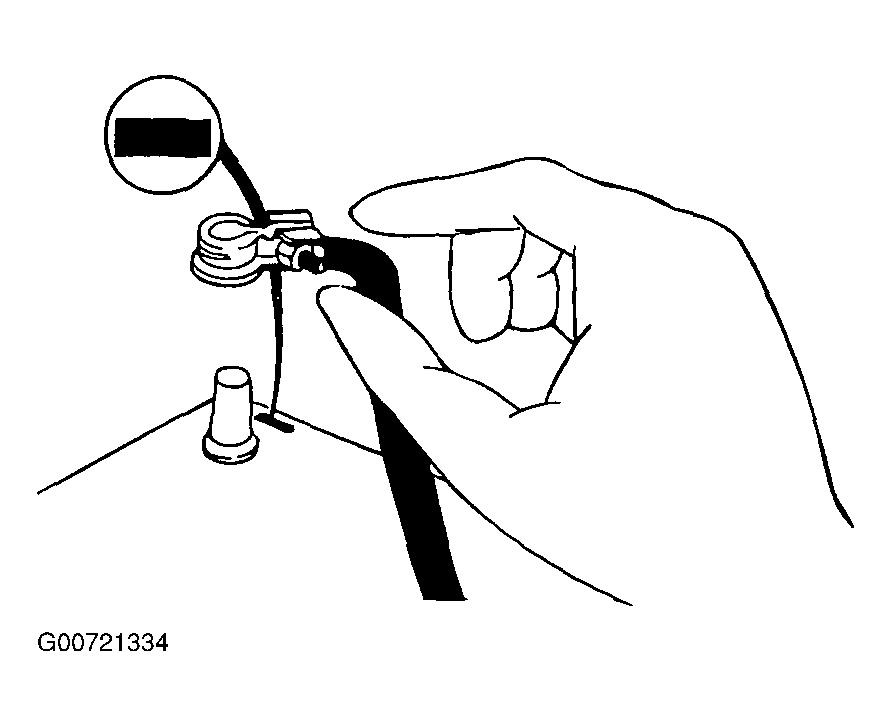

- Disconnect the battery ground cable for more than 10 seconds.
