2004 Hyundai XG350 BaseFACTORY OEM SERVICE PROCEDURE

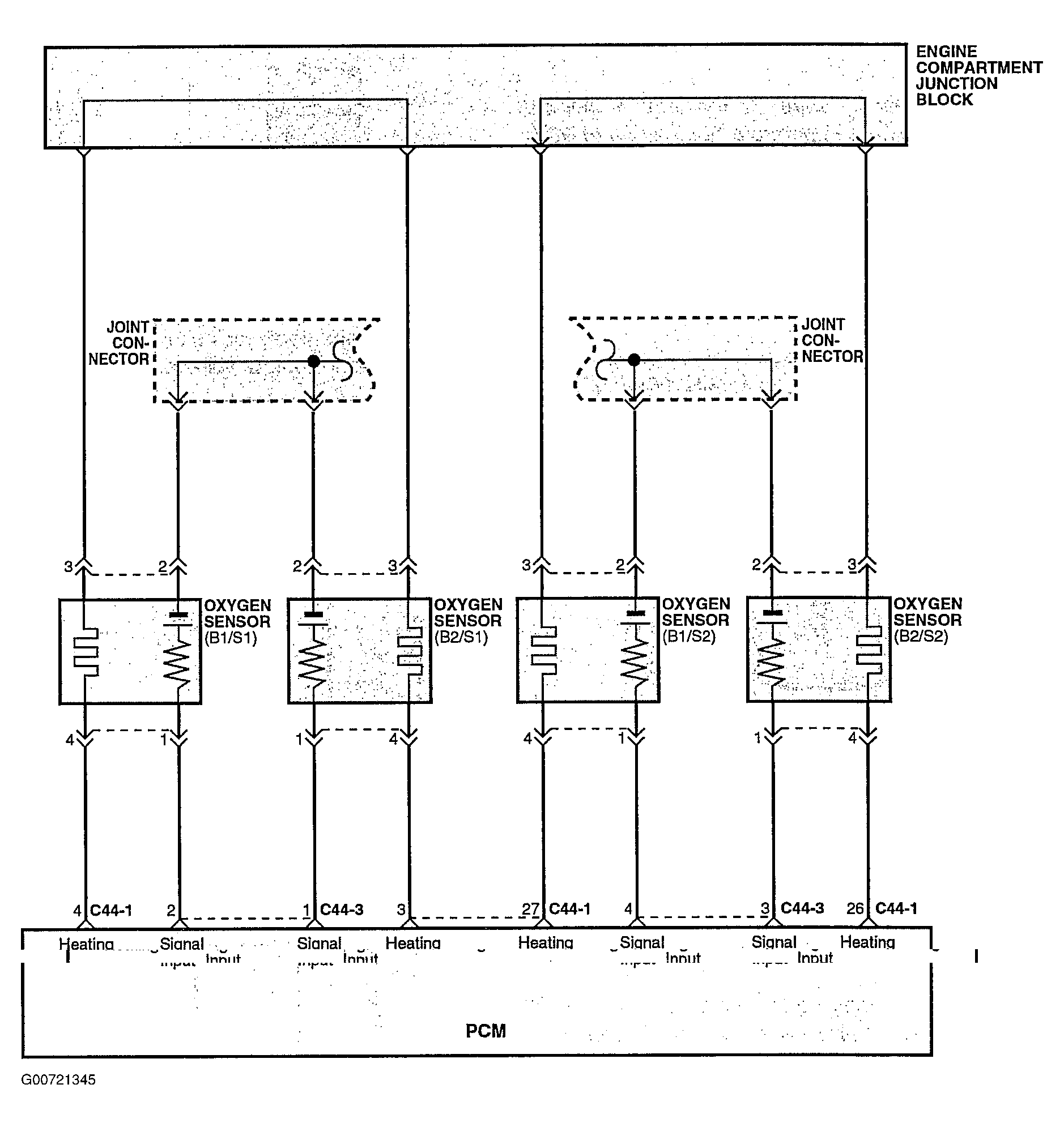

Circuit Diagram
- If the HO2S is defective, abnormally high emissions may occur.

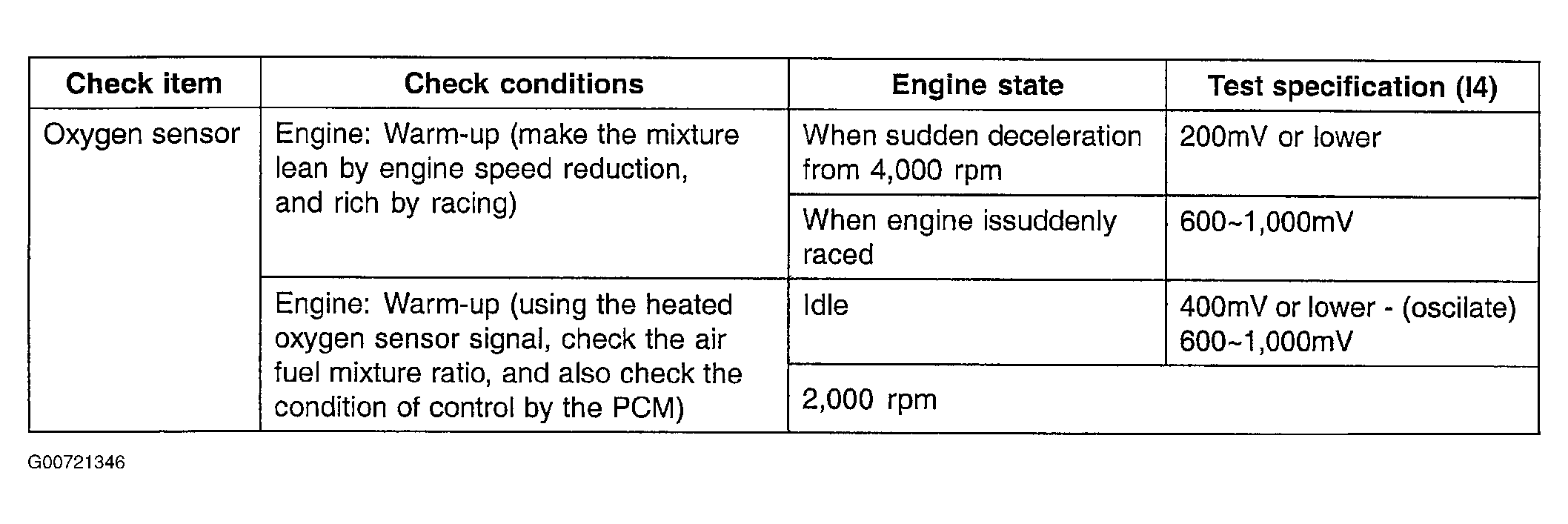

- If the HO2S check results are normal, but the sensor output voltage is out of specification, check for the following items (related to air fuel ratio control system):
- Defective injector
- Air leaks in the intake manifold
- Defective volume air flow sensor, intake air temperature sensor, barometric pressure sensor and engine coolant temperature sensor.
