2004 Hyundai XG350 BaseFACTORY OEM SERVICE PROCEDURE

Using Voltmeter

Disconnect the APS connector.
Check the continuity between terminal 4 and sensor ground.

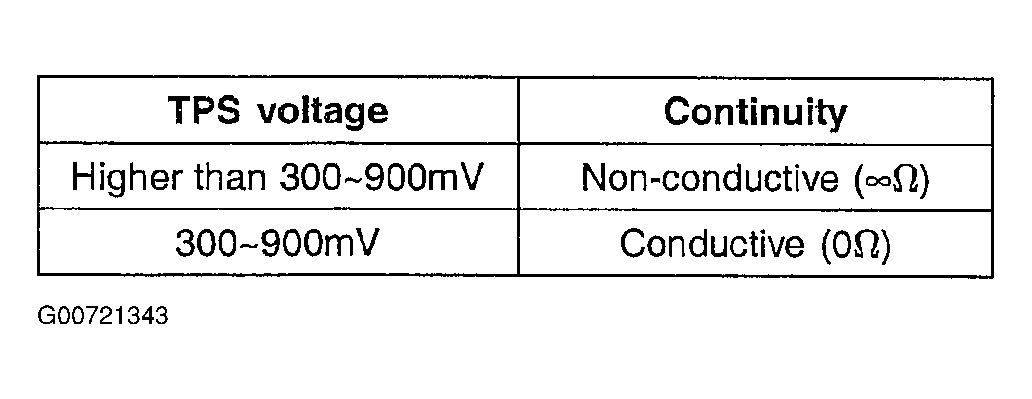

Fig 1: Idle Switch Voltage/Continuity Table
Courtesy of HYUNDAI MOTOR CO.
If out of specification, replace the throttle position sensor.

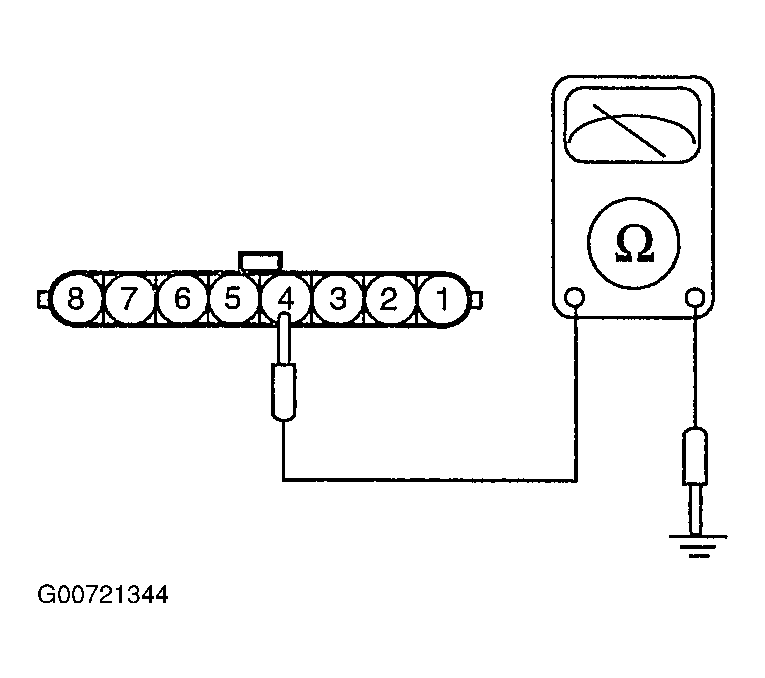

Fig 2: Checking Idle Switch Continuity
Courtesy of HYUNDAI MOTOR CO.
