2004 Hyundai XG350 BaseFACTORY OEM SERVICE PROCEDURE
Fuel Tank: Inspection
- Check the hoses and the pipes for cracks or damage.
- Check the fuel tank cap for proper operation.
- Check the fuel tank for deformation, corrosion or cracking.
- Check the fuel tank inside for dirt or contamination.
- Check the in-tank fuel filter for damage or restriction.
- Test the two-way valve for proper operation.

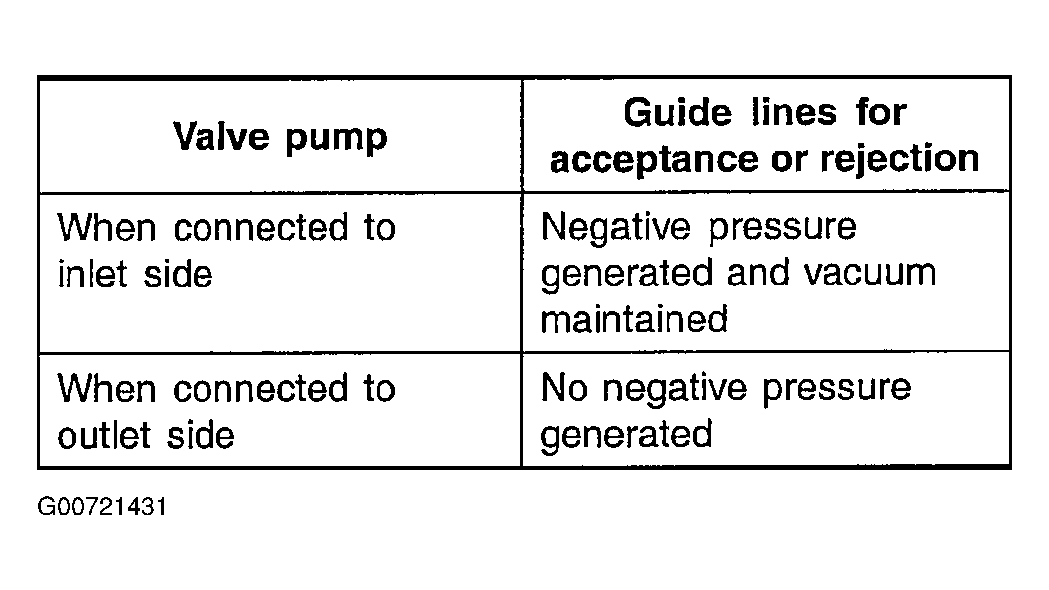

- Using a vacuum hand pump, check the operation of the two-way valve.
