2004 Hyundai XG350 BaseFACTORY OEM SERVICE PROCEDURE
Fuel Line And Vapor Line: Removal
- Remove the fuel tank cap to lower the fuel tank's internal pressure. Raise the vehicle and disconnect the fuel pump connector.CAUTION:
- Reduce the fuel pressure before disconnecting the fuel line and hose, or fuel will spill out.
- Cover the pipe connection with a shop towel to prevent splashing of fuel from residual pressure in the fuel line.

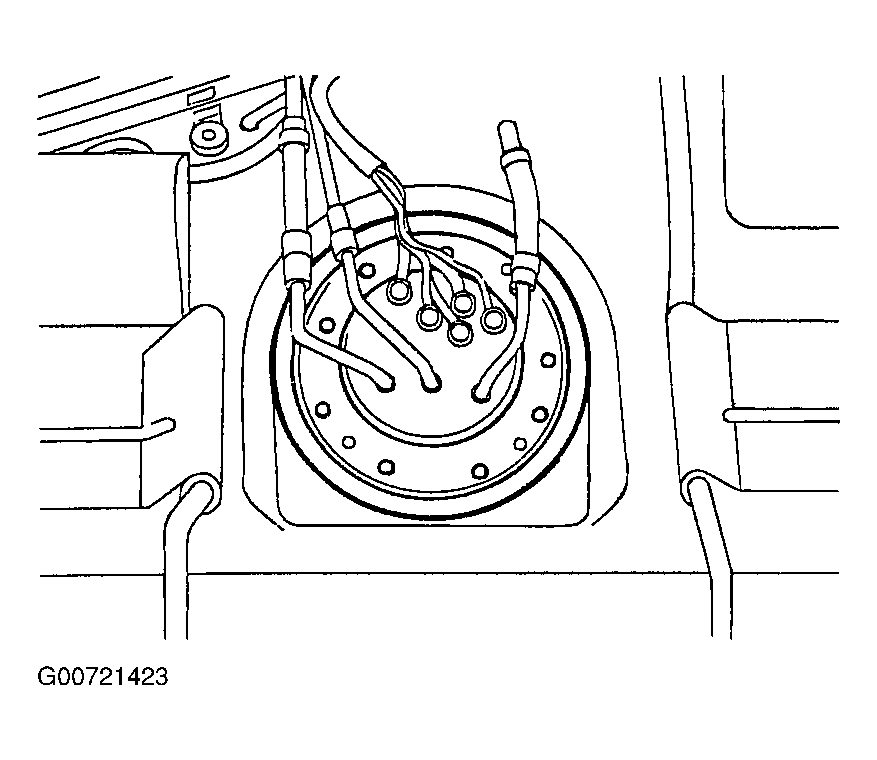

- Remove the fuel pump installation screws, then remove the fuel pump assembly from the fuel tank.
- Remove the fuel return hose and line.
- Remove the fuel vapor hose and line.
