2004 Hyundai Tiburon Base, StandardFACTORY OEM SERVICE PROCEDURE
Fuel Tank: Installation

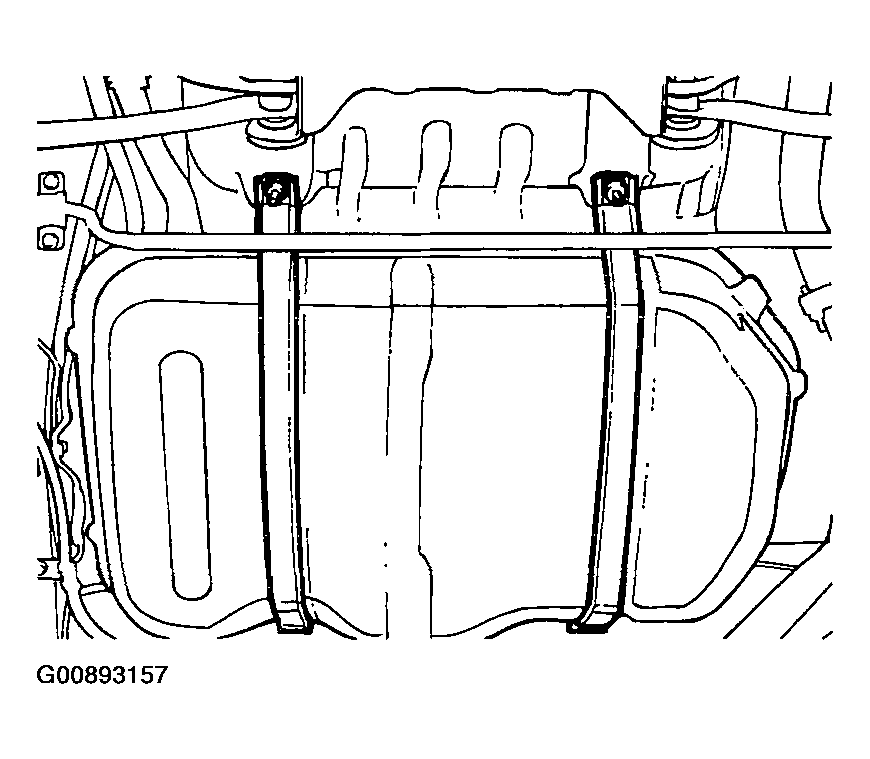

- Confirm that the pad is fully bonded to the fuel tank, and install the fuel tank by tightening the self-locking nuts.

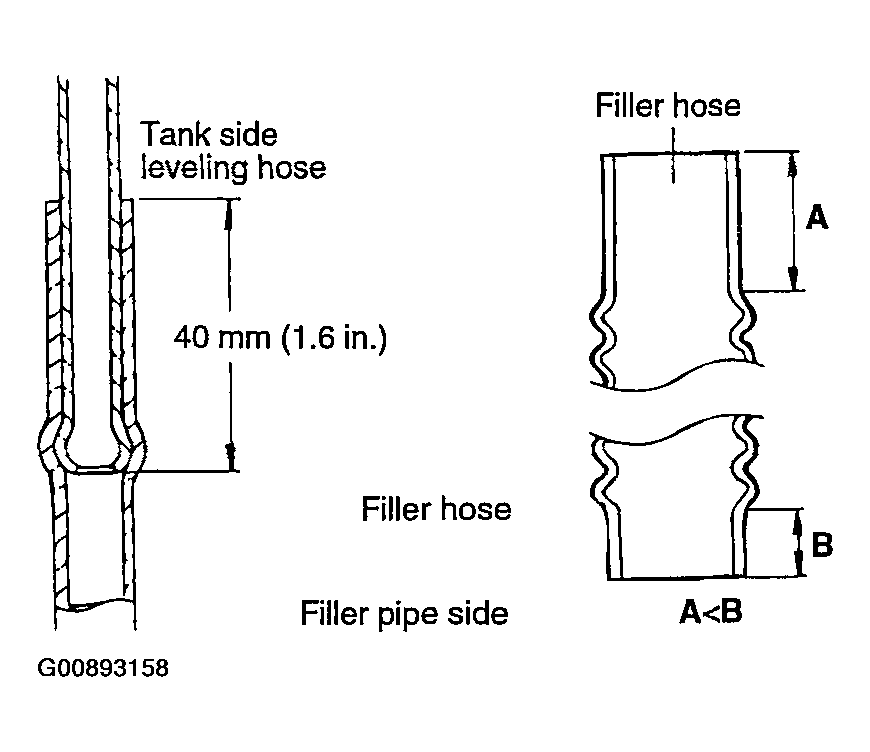

- Connect the leveling hose to the tank and the filler neck. Insert approximately 40mm (1.6 in.).
- When connecting the filler hose (A), the end with the shorter straight pipe should be connected to the tank side.

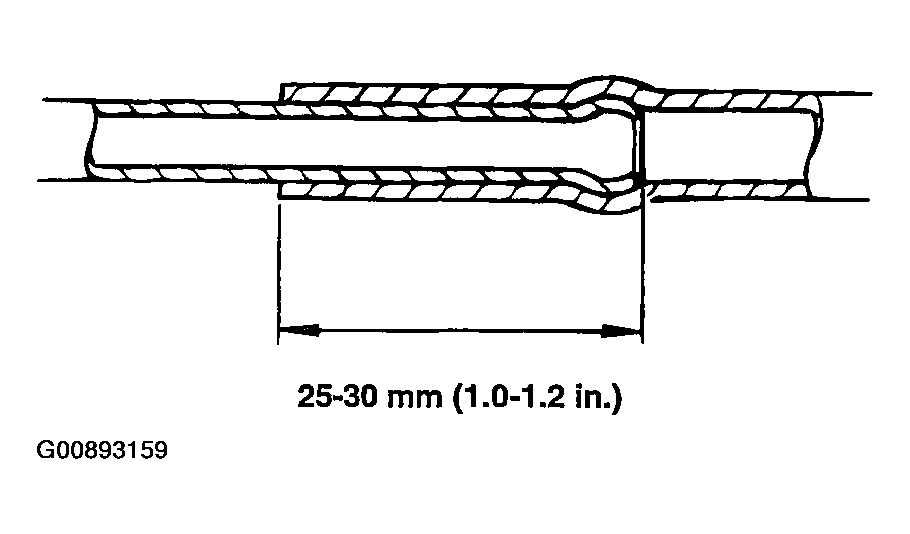

- Connect the vapor hose. When attaching the vapor hose to the line, be sure that the hose is attached as shown in the illustration.
- Connect the high pressure hose to the fuel pump. Make sure that the fuel hose does not twist.
- Connect the electrical fuel pump connector.
