2004 Hyundai Tiburon Base, StandardFACTORY OEM SERVICE PROCEDURE

Accelerator Pedal: Removal

Disconnect the accelerator cable from the accelerator pedal by removing the 2 bolts (A).

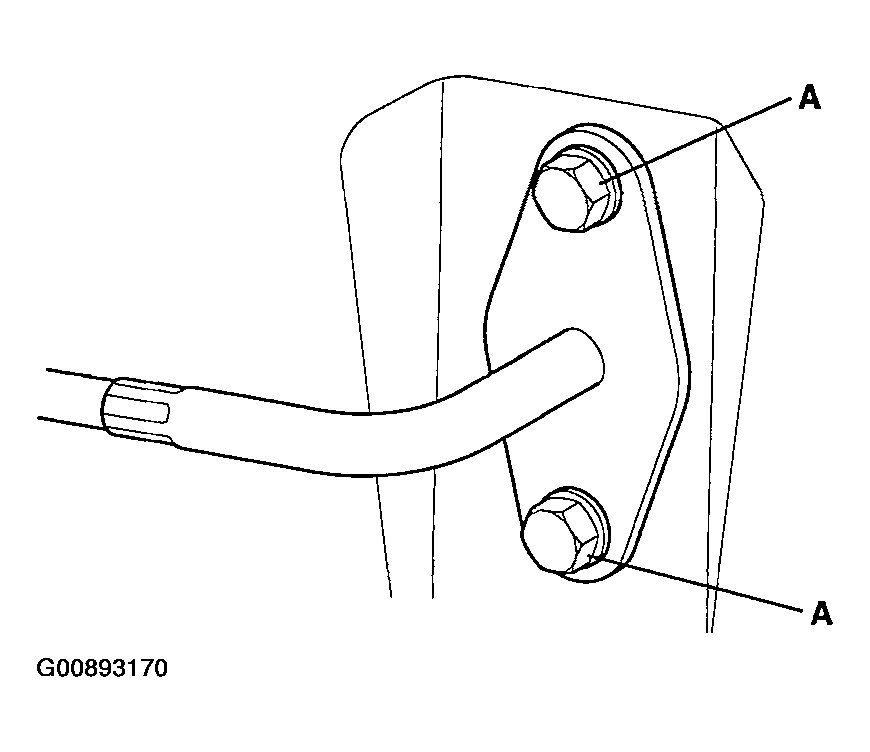

Fig 1: Disconnecting Accelerator Cable From Accelerator Pedal
Courtesy of HYUNDAI MOTOR CO.
After disconnecting the accelerator cable, loosen the bolts (A) of the accelerator arm bracket and remove.

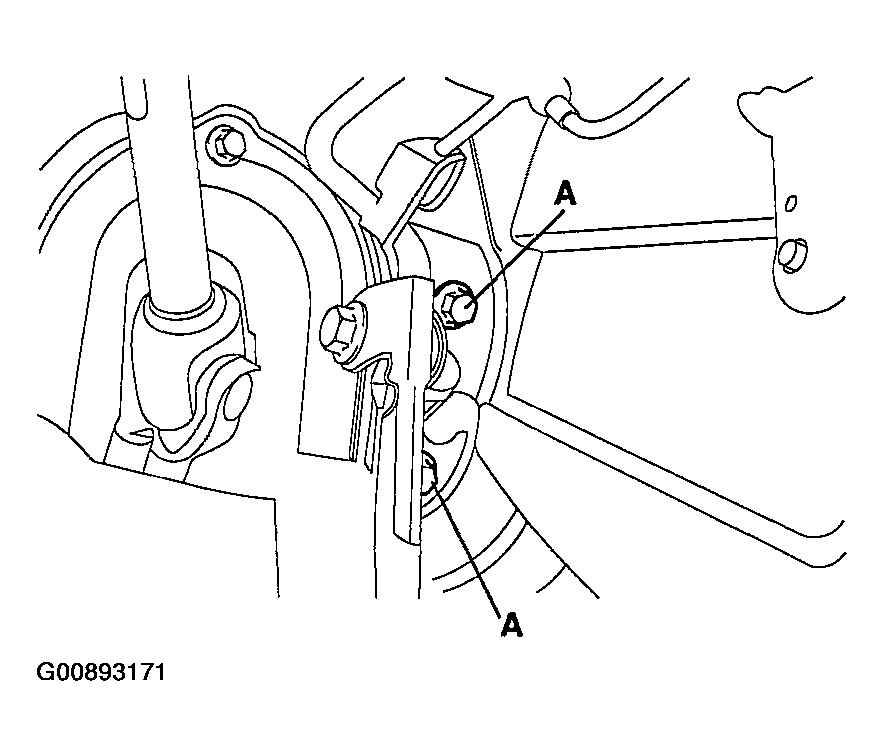

Fig 2: Removing Accelerator Arm Bracket

Courtesy of HYUNDAI MOTOR CO.
