Inspection Procedures
- CHECK HO2S AND ECM CONNECTORS
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Are all connectors good?
Yes: Go to next
No: Repair or replace it.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

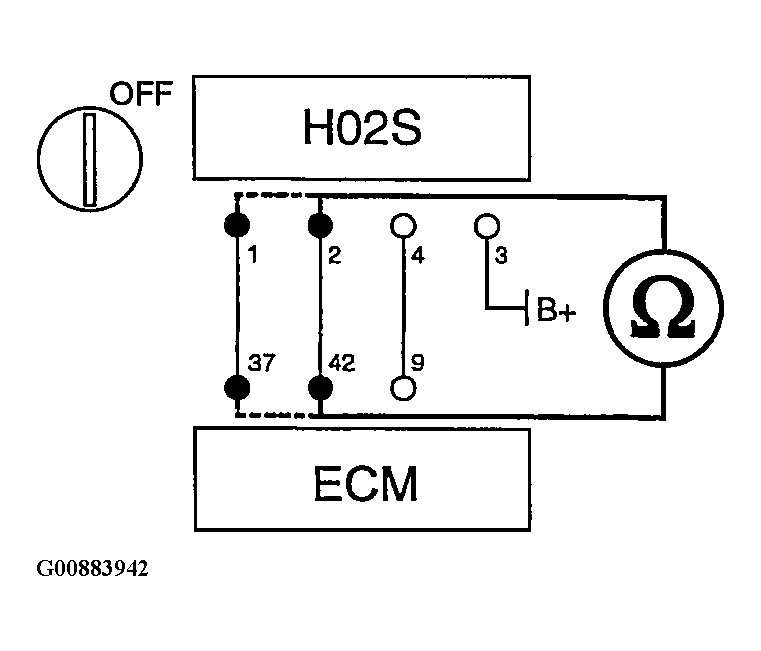

- CHECK FOR SHORT TO GROUND IN HARNESS
- Turn ignition switch to OFF position and disconnect HO2S and ECM connector.
- Measure resistance between terminals 1 and 2 of the HO2S.
- Measure resistance between terminal 2 of the HO2S and chassis ground.
Courtesy of HYUNDAI MOTOR CO.
- Specifications: infinite
Does each resistance indicate open?
Yes: Go to next
No: Repair short or short to chassis ground in harness.
- CHECK HO2S SIGNAL WAVEFORM
- Reconnect the HO2S and ECM connectors.
- Warm up the engine to normal operating temperature.
- Using a Hi-Scan (Pro), monitor the HO2S signal waveform.
Is the rear HO2S signal normal?
Yes: Proceed with ECM PROBLEM PROCEDURE .
No: Replace HO2S.
