Inspection Procedures
- CHECK DTC RELEVANT TO TPS
- Connect a Hi-Scan (Pro) to the data link connector.
- Turn ignition to ON position and monitor other DTCs.
Are any other DTC relating to TPS set?
No: Go to next
Yes: Do all repairs associated with those codes before proceeding with this procedure.
- CHECK INTAKE SYSTEM
- Inspect the intake system for the following items :
- Air leakage
- Connection of each component
Are the items okay?
Yes: Go to next
No: Repair or replace it.

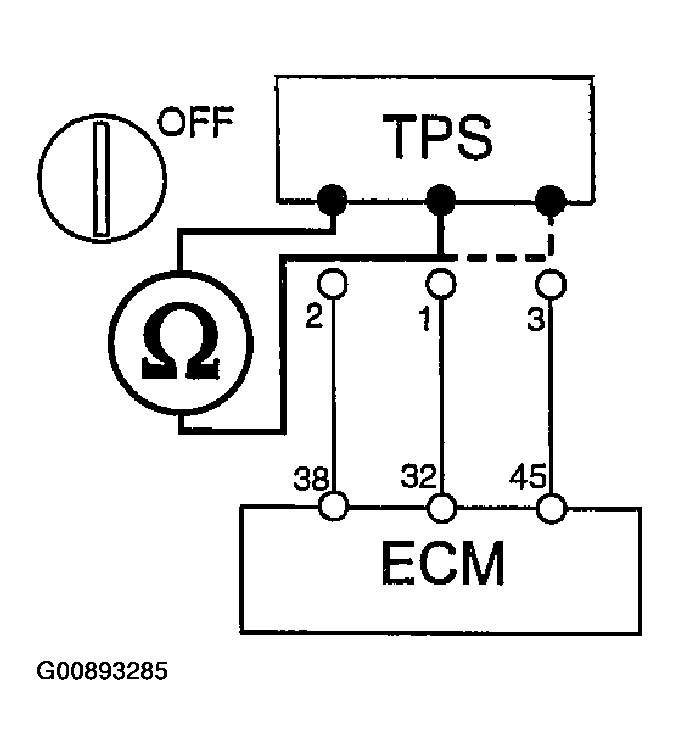

- CHECK TPS
- Turn ignition switch to OFF position.
- Measure resistance between terminals 1 and 2 of the TPS.
- Measure resistance between terminals 2 and the 3 of TPS.
- Refer to SPECIFICATIONS
for more information.
Is resistance within specification?
Yes: Proceed with ECM PROBLEM PROCEDURE .
No: Replace TPS.
