2004 Hyundai Accent BaseFACTORY OEM SERVICE PROCEDURE
Power Circuit Inspection
- Check for open in harness at Memory power input
- Ignition "OFF"
- Connect PCM connector.
- Ignition "ON" & Engine "OFF"

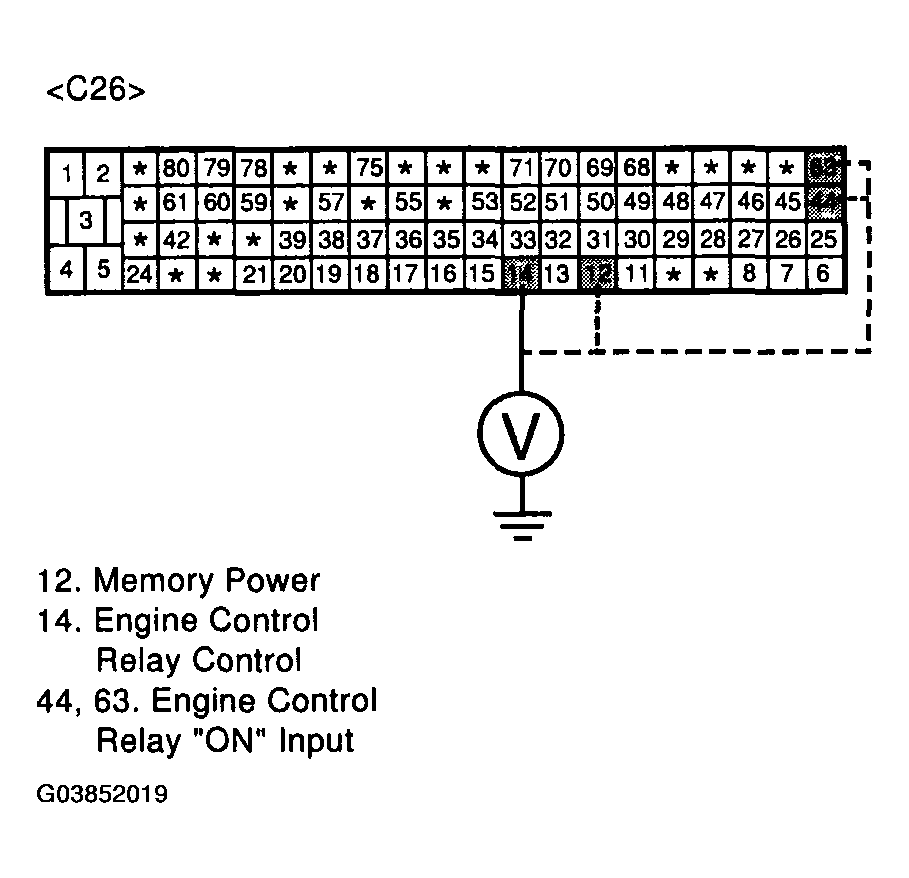

- Measure voltage between terminal 12 of PCM harness connector and chassis ground.
Specification: approximately B+
- Is measure voltage within Specification?
YES
- Go to "COMPONENT INSPECTION " procedure
NO
- Open or short circuit to chassis ground between PCM harness connector and Control relay ON input circuit.
- Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
